1. Anti Static Wristbands
also called as ESD straps, grounding bracelets,grounding wristband, or anti static wrist strap, were started 1960s to anti to the increasing risk of electrostatic discharge (ESD) in sensitive electronic environments. With the promotion of semiconductor and computer technology in the 1970s and 1980s, the electronics industry wake up to the need of protecting delicate components from static electricity. This led to the invention of grounding wristbands and anti-static wrist straps for protect person and sensitive electronic.
Wrist earth strap can be classify into corded wristbands, cordless wristbands, and smart wrist earth strap. Based on their inner construction, have single-wire (single-circuit) wrist straps and dual-wire (dual-circuit) wrist straps two kinds. Their main function - discharge static electricity from the human body to ground.
2. What is Electrostatic Discharge?
Electrostatic discharge (ESD) is the sudden flow of electricity between two electrically charged objects. It typically occurs when a person or object with accumulated static electricity touches another conductive surface, causing a sudden transfer of electrons. ESD can result in permanent damage to microelectronic devices, leading to malfunctions or total failure.
The inner layer of the wristband is woven using conductive fibers (also known as anti-static yarn), which ensures reliable contact with the skin and allows static to be discharge. The outer layer is typically made of regular yarn, providing comfort and durability.

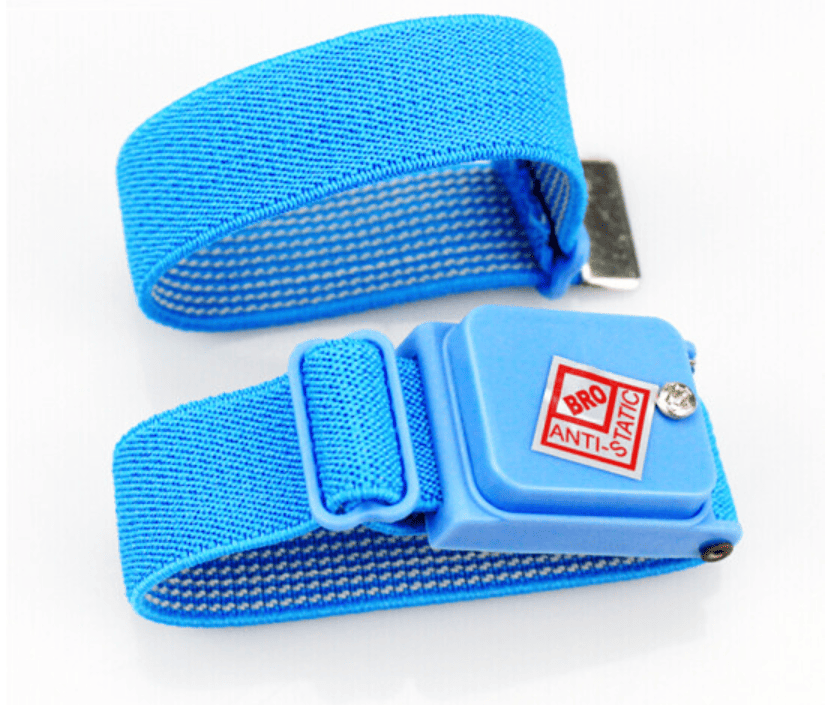

Corded types offer a direct, physical connection to ground via the coiled cord, while cordless models dissipate static through alternative methods, such as capacitive discharge. Smart wristbands incorporate real-time monitoring features to detect proper skin contact and grounding continuity, enhancing safety in critical environments like cleanrooms or PCB manufacturing facilities.
3. ESD Problems Have Magnified During the Past 3 Decades Because of Two Reasons
Firstly, electronics have become more miniaturized, meaning that internal components are smaller and smaller, and more sensitive . Secondly, synthetic materials used in modern workplaces and produce more static electricity, increasing the static hazards. As a result, electrostatic discharge straps, also called as electrostatic discharge straps or wrist earth straps, have become useful in ESD environments.
4. What is an Anti-Static Wristband?

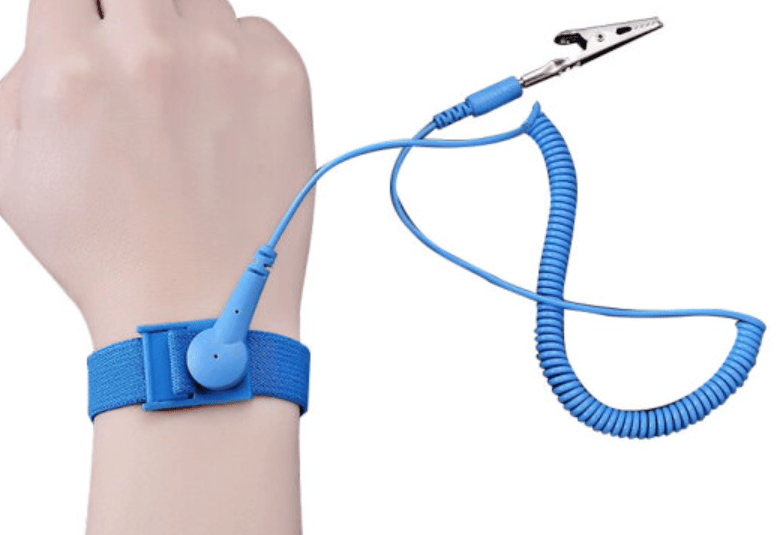

An anti-static wristband is a device worn on the wrist to safely discharge static electricity to the ground. It consists of a band—usually adjustable—with a cord that connects to a grounding point. Also called grounding bracelets or anti-static wristband,An anti static electricity bracelet prevents the wearer from building up a static charge that could damage sensitive electronic components.
Technical Specifications and Working Principle of the Anti-Static Wrist Strap
The anti-static wrist strap is a device worn on the human wrist to safely discharge accumulated static electricity from the body. It comes in various types, including corded and cordless models, with metal bands or elastic bands woven with conductive fibers. The product discussed here is a corded adjustable anti-static wrist strap with a snap connector, designed to effectively protect sensitive components from static discharge interference.
The length of coiled cord: 2.4m
Resistance: 10⁶ ohms
Built-in protection resistor: 10⁶ ohms (1 megaohm)

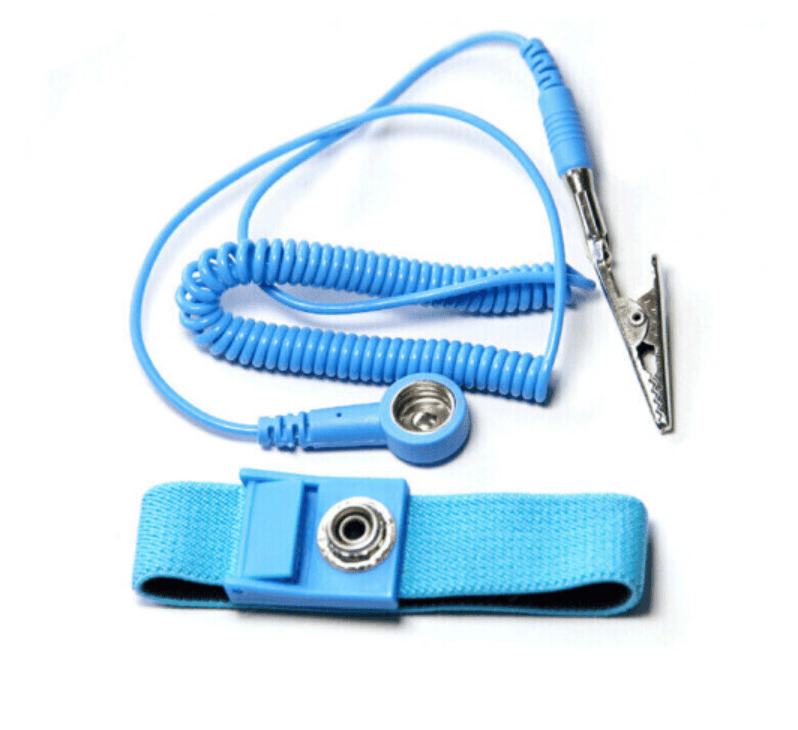

The strap consists of the following components:
Anti-static elastic wristband
Detachable snap connector
Coiled grounding wire
Protective resistor
Alligator clip or grounding plug
The anti static electricity bracelet works by deliverying static charges from the human body to the ground through the esd grounding wrist strap. When weared properly — with the wristband - full contacting with the skin and the grounding cord securely connected to an effective ground point — the strap can safely discharge static electricity in less than 0.1 seconds,as a shocker bracelet.
This electrostatic strap is considered the most widely used in ESD (Electrostatic Discharge) protection systems, especially in electronics manufacturing, cleanroom operations, and handling of sensitive electronic parts such as zero-resistance components (e.g., MOSFETs, ICs, etc.).
7. Materials Used in Anti-Static Wristbands
Grounding bracelets are made from a combination of materials. These include conductive fibers (such as carbon or stainless steel), insulating fabrics, and flexible elastomers. The combination of these materials ensures durability, comfort, and effective static discharge.
A typical anti-static wrist strap is composed of 5 parts: an electrostatic belt, an elastic wristband, a detachable snap connector, a coiled grounding cord, a built-in safety resistor, and a plug or alligator clip for connecting to a grounding point.
The inner layer of the wristband is woven using conductive fibers (also known as anti-static yarn), which ensures reliable contact with the skin and allows static to be discharge. The outer layer is typically made of regular yarn, providing comfort and durability.
Corded types offer a direct, physical connection to ground via the coiled cord, while cordless models dissipate static through alternative methods, such as capacitive discharge. Smart wristbands incorporate real-time monitoring features to detect proper skin contact and grounding continuity, enhancing safety in critical environments like cleanrooms or PCB manufacturing facilities.
8. Main Components of an Anti-Static Wristband
An anti-static wrist strap consists of three main components:
The wristband (fabric or elastic)
A snap connector
A grounding cord Each part plays a critical role in transferring static electricity from the body to a grounding source.
9. Conductive Material
The inner lining of the wristband is made from conductive material that keeing full contact with the skin. This layer acts as a channel for electrical charges, ensuring they are directed away from the body.
10. Snap Connector
The snap connector connects the wristband to the grounding cord. It is typically made of metal and allows for a secure and reliable connection, ensuring consistent grounding.
11. Insulative Material
The outer surface of the anti-static wrist strap is made from insulative material. This layer prevents external electrical contact and protects the internal conductive path.
12. How Do ESD Wristbands Work?
When a person wears an anti-static wrist strap, the conductive material touches the skin, and the grounding cord connects to an earth ground. As static charges build on the body, they are safely discharged through ground wrist strap, down the cord, and into the grounding point. This prevents harmful electrostatic ,discharge static from electronic components.
13. Why Use an Anti Static Wristband?
Using an anti-static wristband, or wrist grounding strap, is a reliable and low-cost method of protecting sensitive devices during handling or repair. It reduces the risk of static damage, improves product's percent of qualified, and is a key of ESD control in work.
14. Types of ESD Wrist Straps
There are several types of ESD wrist straps:
Fabric anti static strap

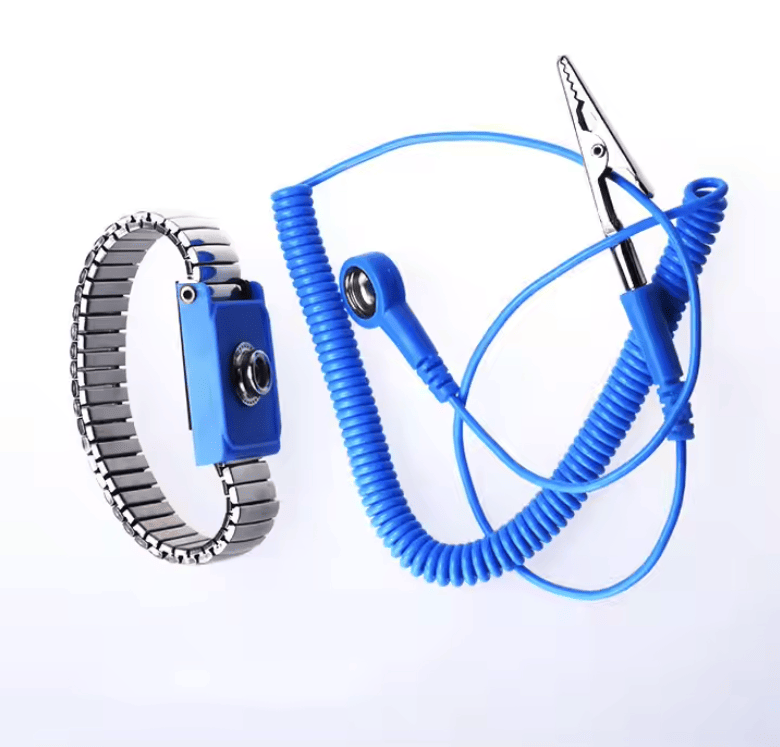

Metal band static straps
Adjustable electrostatic discharge band

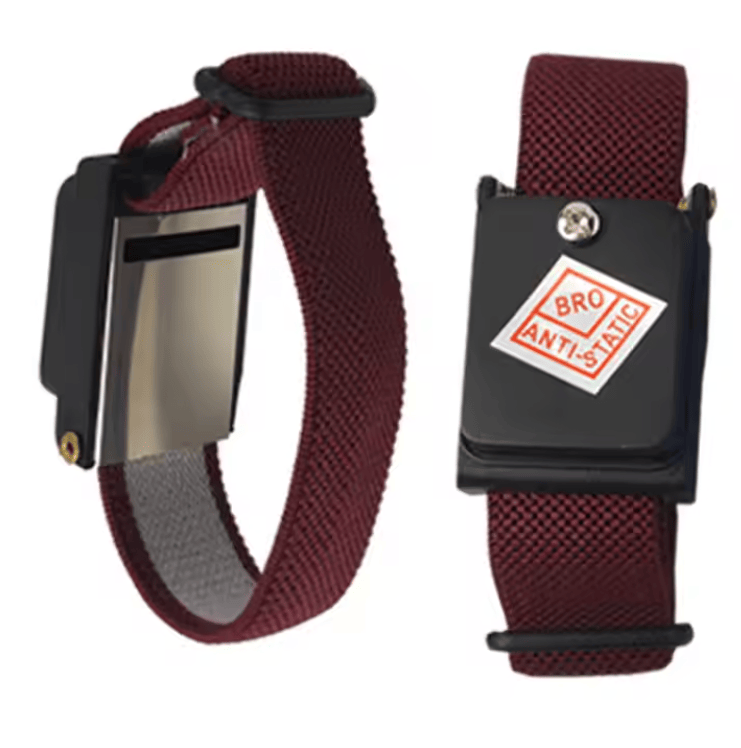

Wireless anti-static wristbands (less effective)
Disposable eds strap
15. Best Practices for Using Anti-Static Wristbands
Always connect the eds strap to a verified grounding point.
Ensure ESD strap is snug and makes good contact with the skin.
Test the antistatic wrist straps regularly using an ESD tester.
Use anti-static mats with grounding bracelet ports for added protection.
16. Common Mistakes to Avoid When Using Anti-Static Wristbands
Not connecting the wrist key strap to a ground.
Wearing the strap over clothing.
Using damaged or worn-out ESD straps.
Assuming the wrist strap still works without regular testing.
17. Lifespan and Quality Considerations of Anti-Static Wrist Straps
The lifespan of an esd band is closely depend on its' quality. The most cause of anti static wristbands broken is during of daily use. Repeated bending and flexing of the esd band gradually damages the internal metal fibers, leading to the loss of electrostatic discharge (ESD) functionality.
Grounding bracelet benefits, All of our ESD Factorys anti-static wrist straps undergo strict flex testing before shipment. Each product is manufactured under stringent quality control processes, ensuring it meets the required bend cycle endurance standards. As a result, the expected service life ranges from 1 to 2 years under normal usage conditions. Some high-end models are engineered to resist regular wear and tear and even come with a lifetime quality guarantee.
In contrast, many other anti static wristbands on the market are low-cost and low-quality, meeting only minimum resistance requirements (typically 1 MΩ) to be deemed compliant. Unfortunately, these standards focus solely on performance at the time of testing, and do not address durability or longevity. As a result, such this armband esd often fail prematurely, with no guarantees regarding the anti static straps' actual service life.

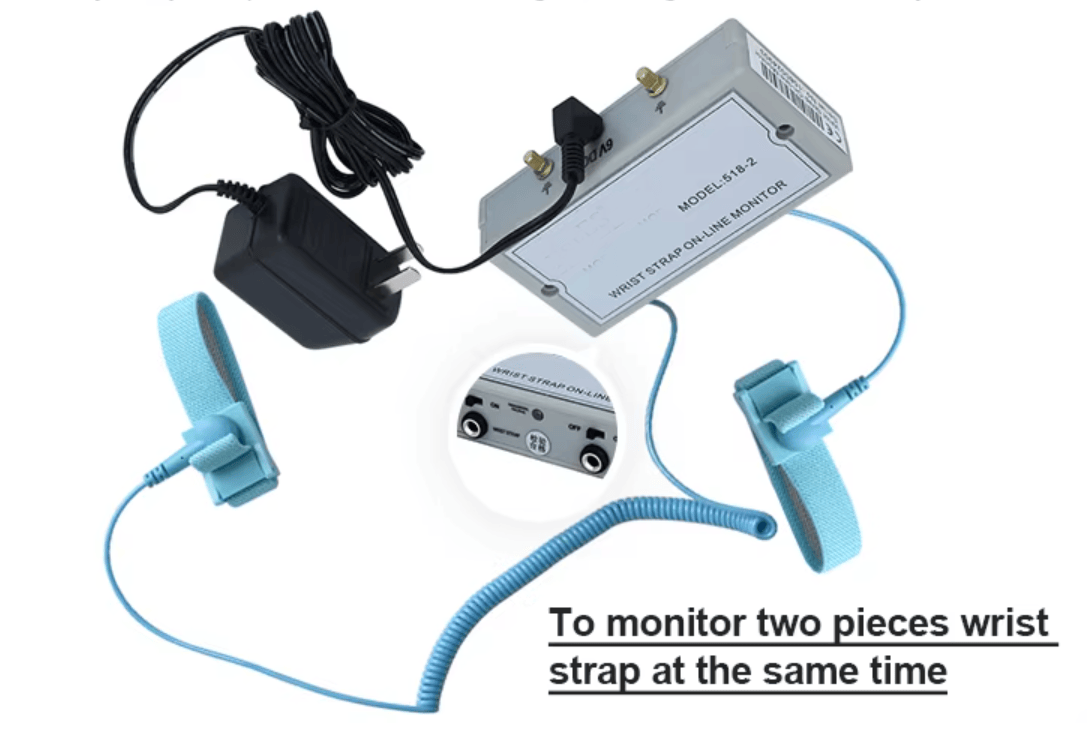

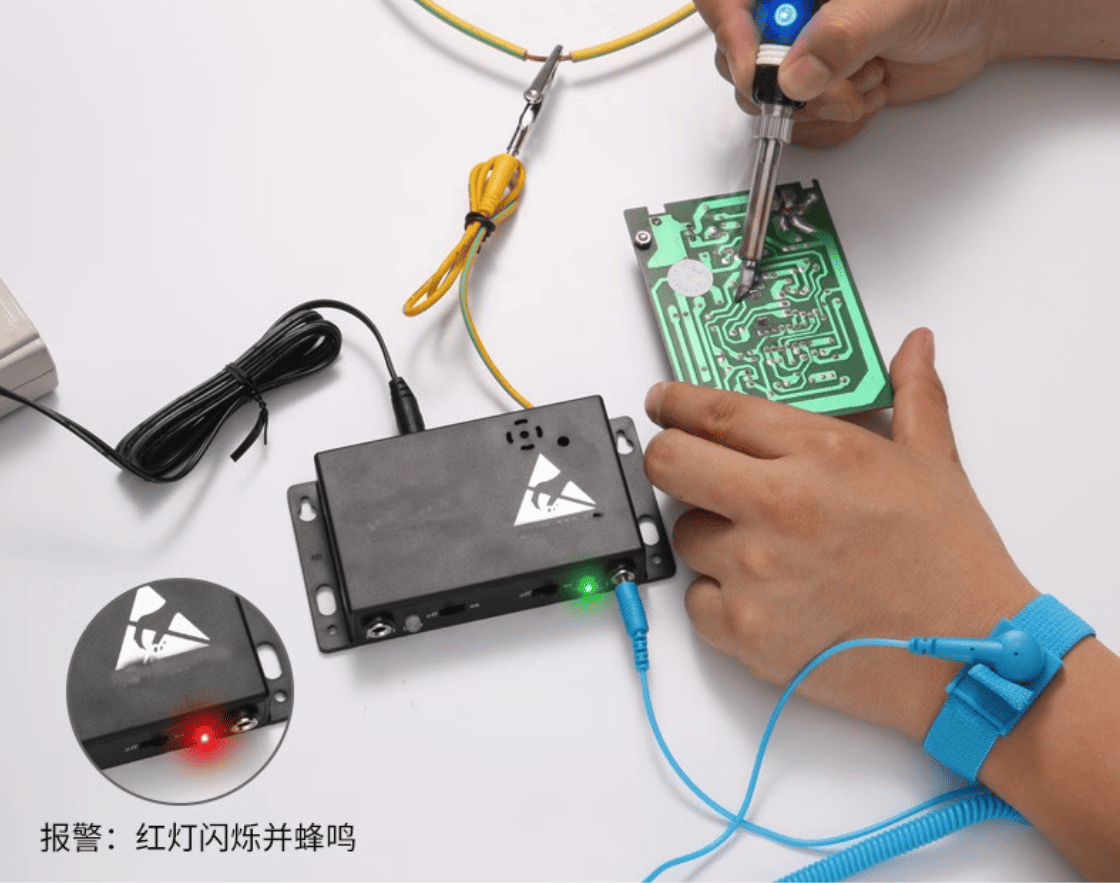

18. User Instructions and Technical Specifications of the Smart Anti-Static Wrist Strap
Double-circuit PU cord of esd strap: Connect one end to the automatic detection and alarm device. Turn the toggle switch to the “ON” position to start use.
Connect the alligator clips at both ends to the grounding system to form a complete conductive circuit.
Normal working condition: Both the red and green indicator lights remain off, and no alarm sound is triggered.
If the wrist strap is not properly connected to the user's body, the red light will illuminate and an alarm will sound.
If the user's connection to ground is poor, the green light will turn on and alarm will be triggered.
If both connections (to the user and ground) are faulty, both red and green lights will illuminate and an alarm will sound.
Battery replacement: Replace the lithium battery when low; average battery life is six months.
Dry skin: If the user's skin is very dry, the red light will be light.If that, moisten our skin of contact with esd wristband to ensure conductivity and keep ESD resistance within acceptable arrange.
Lithium battery in the detector
Dual-circuit PU cord
Alligator clips
Weight: 0.06 kg
Wristband: Hypoallergenic stainless-steel spring strap, adjustable range: 0–30 mm
Grounding wire: Includes one grounding cable with an inbuilt 1MΩ safety resistor
Casing material: ABS plastic
Connector material: Copper
PU coiled cord: Contains 7 strands of copper foil wire, total length: 3 meters
Electrostatic discharge time: Less than 0.1 seconds (from 1500V to 100V)
The pulsera antiestatica of grounding bracelet pc : a wrist strap and real-time ESD monitoring system form into a single unit. anti-static wristband electrostatic discharge wristband replaces traditional static control equipment and enhances fault detection sensitivity, wrist grounding strap allowing for immediate alerts when grounding or skin contact is compromised. This advancement represents a significant technological leap in static control, diy anti static wristband offering increased production efficiency and product quality assurance. anti shock bracelet complies with both environmental and ESD certification standards.
ESD Factorys offers high-quality electrostatic discharge bracelet, anti static bracelet, and grounding bracelets do grounding bracelets work ,tailored for industrial and personal use. With proven reliability, ESD Factorys' esd wrist strap help control the risk of static damage in production lines, labs, and even PC repair stations. ESD Factorys' full range of ESD solutions—including anti-static wrist strap kits, esd mat with wrist strap,earthing shoe straps, and esd shoe straps—to build your complete static protection system.
19.When choosing a right supplier for electrostatic protection, ESD Factorys anti-static wristbands highlight for our high quality,stable, and we insist on ESD international standards. If you need an antistatic wrist straps, cane wrist strap,static wristband,diy anti static strap,switch wrist straps,ESD strap, grounding wristband, or anti-static wrist strap,or antistatic wrist strap, ESD Factorys offers products that integrate advanced conductive materials, durable snap connectors, and comfortable insulative components. Their wrist earth straps are used in countless professional ESD environments, including electronics manufacturing, cleanrooms, and service centers.
20.what does it mean to be grounded electricity?
In electronics and static control, grounding plays a critical role in Electrostatic Discharge (ESD) protection. When a person accumulates static electricity—through movement, friction, or working near electronic components—and is not grounded, the static charge remains on their body. If they touch sensitive electronic devices, it may result in an ESD event, potentially damaging semiconductors, integrated circuits, or PCB components.
A digital wristband or static strap for car is used to maintain the wearer at zero potential relative to the equipment they are handling. By wearing a ground bracelet, any static buildup is continuously and safely discharged through the 1MΩ resistor in the wristband wire and routed through the grounding point—ultimately dissipating into the Earth.
In short, to be grounded means:
Your body or equipment has a low-resistance path to the Earth.
Voltage differences between your body and the equipment are neutralized.
Static electricity is safely removed to avoid electrical damage.
Grounding is the foundation of ESD control, especially in cleanrooms, electronics assembly, semiconductor manufacturing, and laboratories where high-precision, static-sensitive devices are handled.
ESD Factorys provides a full range of anti static wristbands, including adjustable ESD bracelets, coiled grounding straps, ESD wristbands with banana plugs, and disposable anti-static straps—all designed to offer maximum electrostatic discharge protection. With decades of expertise, ESD Factorys ensures you stay grounded, safe, and ESD-compliant.
By choosing ESD Factorys, you're investing in electrostatic discharge wristbands that are rigorously tested, easy to use, and built for professional environments. Their grounding bracelets help protect sensitive electronics, boost production reliability, and reduce costly static damage. Whether you are setting up an ESD mat with wrist strap or looking for DIY anti-static wristband solutions, ESD Factorys has the right product for your application.
Explore ESD Factorys full range of ground wrist strap,or electrostatic discharge wrist strap, and discover how our grounding bracelets and static straps can safeguard your work and equipment from electrostatic hazards,contact with us！
