Do i really need an anti static wrist strap?
What is an ESD Wrist Strap?
An ESD (Electrostatic Discharge) Wrist Strap is a wearable antistatic device used to safely discharge static electricity from the human body to the ground. It is commonly worn during electronic assembly or handling sensitive components to prevent ESD damage.

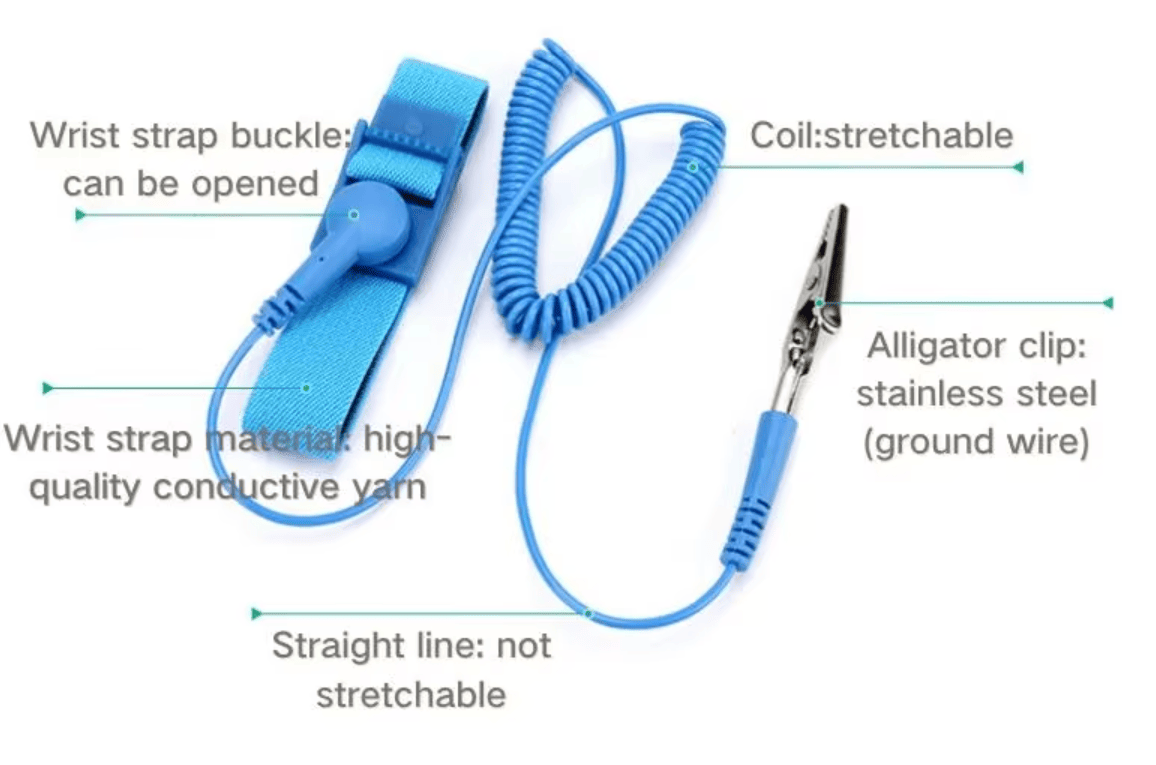

Structure & Materials
Elastic Band: Inner layer made of conductive fibers; outer layer made of regular yarn.
Snap Button: Connects to coil cord.
Coil Cord: Spring wire, length up to 250cm.
Resistor: 1MΩ (for safe static discharge).
Plug or Clip: Connects to ground.
Types of ESD Wrist Straps
| Type | Description |
|---|---|

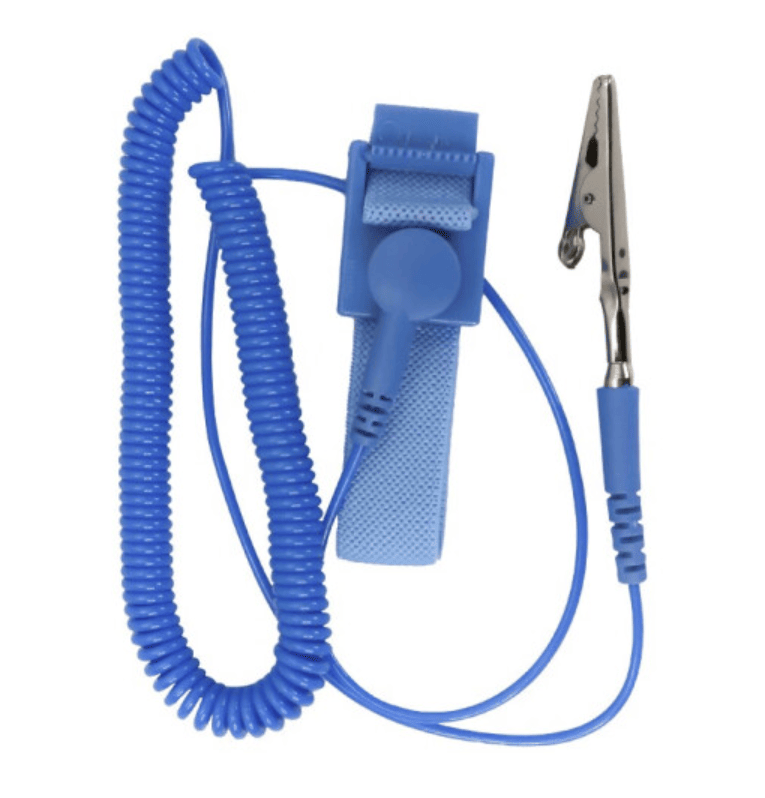

| Wired | Most common. Direct connection to ground through a coil cord. |

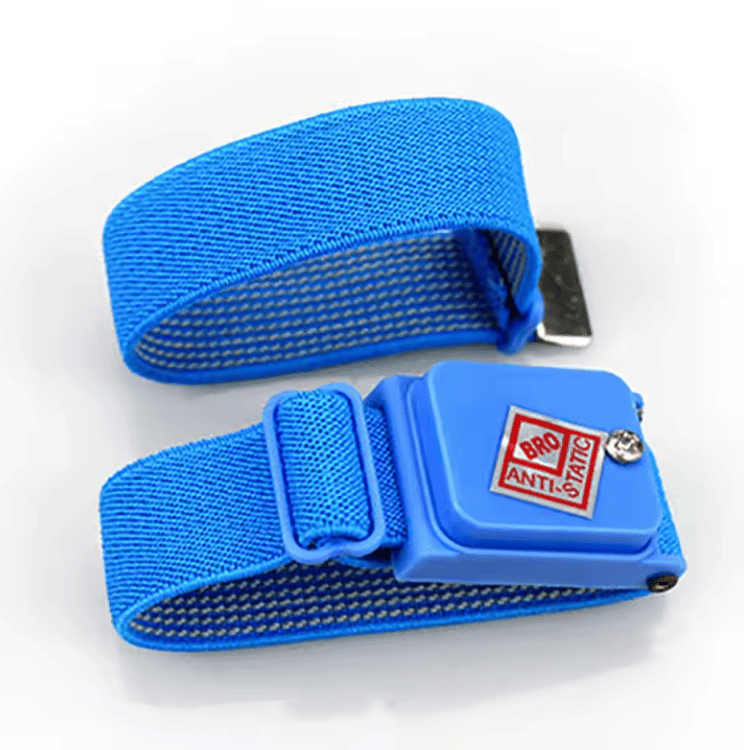

| Wireless | Uses electrostatic balancing principle and corona discharge for ESD control. |
| Smart | Advanced models with dual-circuit feedback and performance indicators. |
| Single-loop | Basic version with one discharge circuit. |
| Dual-loop | Two independent grounding circuits. Ensures safety if one fails. |
Working Principle
When worn properly, the wrist strap ensures direct contact between skin and the conductive band. Static electricity from the body flows through the wristband, coil cord, and resistor into the ground, neutralizing the charge in less than 0.1 seconds.
Usage Instructions
Wear the band tightly around your wrist, ensuring good skin contact.
Connect the snap to the coil cord.
Plug the cord into a grounded point, such as an ESD mat, ground socket, or grounding plug.
Ensure grounding continuity is maintained at all times.
Important Notes
ESD straps must be worn directly on skin to work properly.
Test wrist straps regularly to ensure they are functioning (especially in high-precision environments).
Avoid using damaged cords or connections.
Dual-loop straps are recommended for critical electronic production lines.
Materials
Band: Conductive rubber, silicone, or elastic fabric
Cord: PU, PVC, carbon fiber, silver-plated
Resistor: 1MΩ (Standard for personal safety)
Why It’s Important
Prevents static buildup that could damage microchips, semiconductors, sensors, etc.
Essential in electronics assembly, cleanrooms, semiconductor factories, and PC repairs.
A basic, low-cost tool to ensure product quality and worker safety.
