esd ionizer -removable ionizing emitters

这里是JH1000A卧式离子风机的英文翻译：

esd ionizer Operating Principle

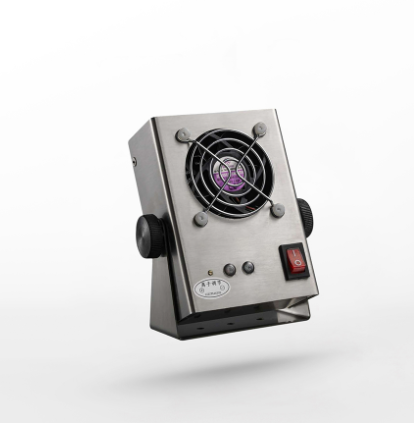

The 1000A Horizontal Ionizing Fan generates a large volume of airflow containing both positive and negative ions, which neutralizes static charges on object surfaces.

• If the object surface carries a negative charge, it will attract positive ions from the airflow.

• If the object surface carries a positive charge, it will attract negative ions from the airflow.

• This process neutralizes static electricity, effectively eliminating electrostatic charges.

The 1000A Horizontal Ionizing Fan is equipped with an axial fan to provide airflow, and the airflow speed can be adjusted over a wide range using a speed control switch.

esd ionizer  Mechanism

The ionizing component operates under high voltage and low current, creating a stable high-voltage electric field that ionizes the surrounding air. The generated ions are carried by the airflow to the object surface, neutralizing static electricity.

• The ionizing component includes a specialized cleaning device, which removes dust buildup from the ionizing needles, ensuring the proper functioning of the ionizer.

• The static elimination function of the 1000A Ionizing Fan helps resolve various production issues caused by static electricity, such as:

• Dust attraction problems

• Adhesion issues in plastic processing

• Electrostatic repulsion, which causes small parts to jump or misalign

esd ionizer Features

1. Rapid static elimination

2. Large ionized airflow coverage

3. Wide-range airflow adjustment

4. Stable ion balance, with an optional ion regulator if needed

5. Built-in ion emitter cleaning system

6. Equipped with an ionization indicator

7. Optional cooling or heating function

8. Optional air filter attachment

9. Adjustable airflow direction

10. Reliable grounding protection

esd ionizer Technical Specifications

esd ionizer Test Results

Test Conditions

• Test Voltage: 1KV – 100V

• Ambient Temperature: 22°C

• Humidity: ≤ 60%

📌 Notes:

• The ion balance voltage and static elimination time of the JH1000A Ionizing Fan comply with ESD standards.

• Static elimination time was measured using a ME268A Electrostatic Comprehensive Tester, from 1000V to 100V.

• Test data may vary depending on ambient temperature and humidity.
