How to Choose the Right ESD Mats?

How to Choose the Right ESD Mats?

Choosing the right ESD (Electrostatic Discharge) mat depends on your work environment, application, and specific ESD protection needs. Here are the key factors to consider:

1️⃣ Material Type: Rubber vs. Vinyl

🔹 ESD Rubber Mats – Best for soldering & high-heat environments

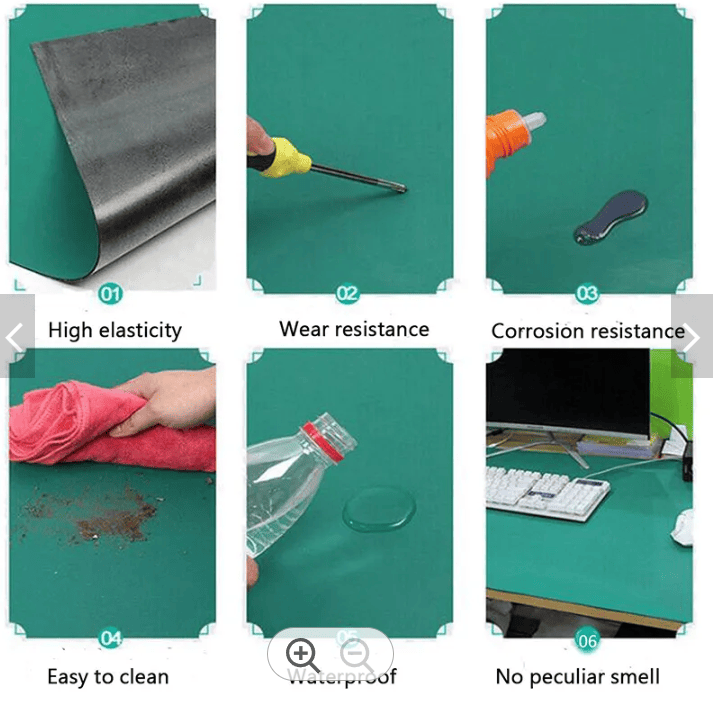

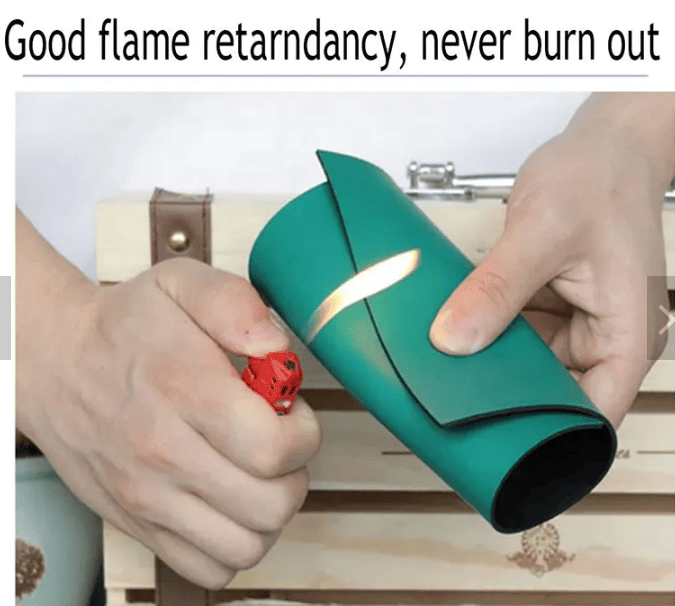

• Durable, heat- and chemical-resistant.

• Suitable for electronics manufacturing, repair benches, and assembly lines.

• More expensive than vinyl but longer-lasting.

🔹 ESD Vinyl Mats – Budget-friendly & versatile

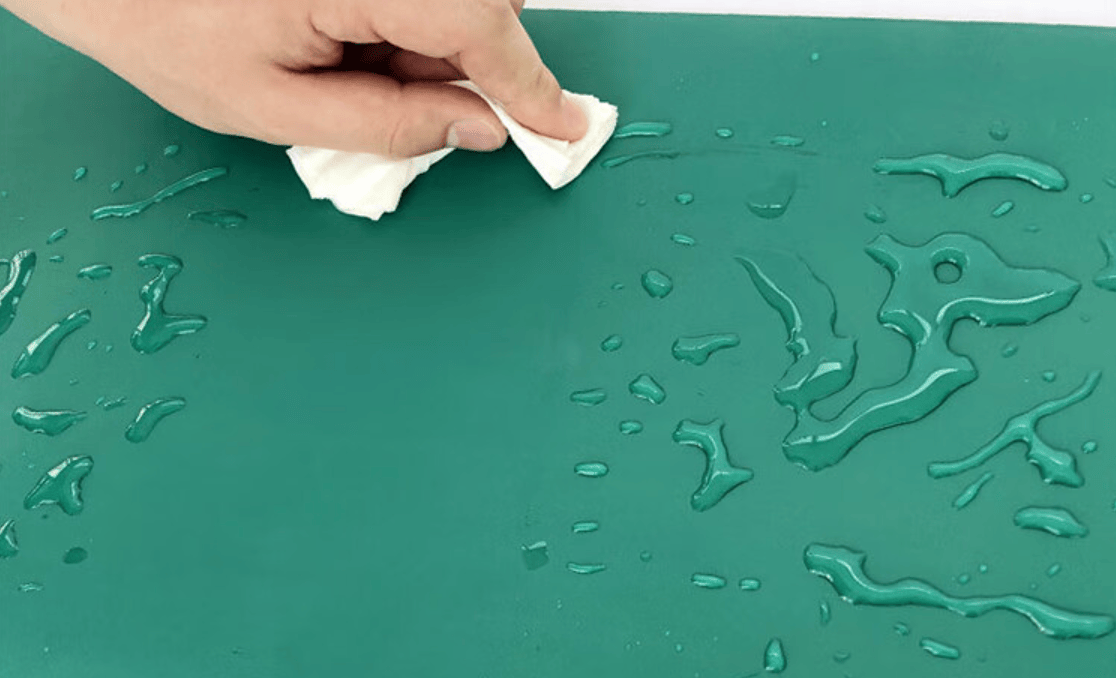

• Cheaper, lightweight, and easy to clean.

• Ideal for light-duty applications like offices or IT workstations.

• Not as heat-resistant as rubber.

2️⃣ Conductivity Level: Dissipative vs. Conductive

✔ ESD Dissipative Mats (10⁶ - 10⁹ Ω/sq)

• Slows down charge flow to prevent sudden discharges.

• Ideal for general electronics work and assembly areas.

✔ ESD Conductive Mats (10³ - 10⁵ Ω/sq)

• Allows charge to flow quickly to ground.

• Used in highly sensitive environments like semiconductor or cleanrooms.

💡 Which one to choose?

• Dissipative mats are the most commonly used in general electronics workbenches.

• Conductive mats are best for extremely ESD-sensitive areas.

3️⃣ Mat Thickness

• 1.5mm - 2mm → Lightweight, suitable for occasional use.

• 2mm - 3mm → Standard workbench use, provides durability.

• 3mm - 5mm → Heavy-duty industrial use, long-lasting protection.

•


4️⃣ Surface Texture: Smooth vs. Textured

🔹 Smooth Surface – Easier to clean, good for precision work.
🔹 Textured Surface – Provides grip for tools, prevents slipping.

5️⃣ Size & Form: Mat Roll vs. Pre-cut Mat

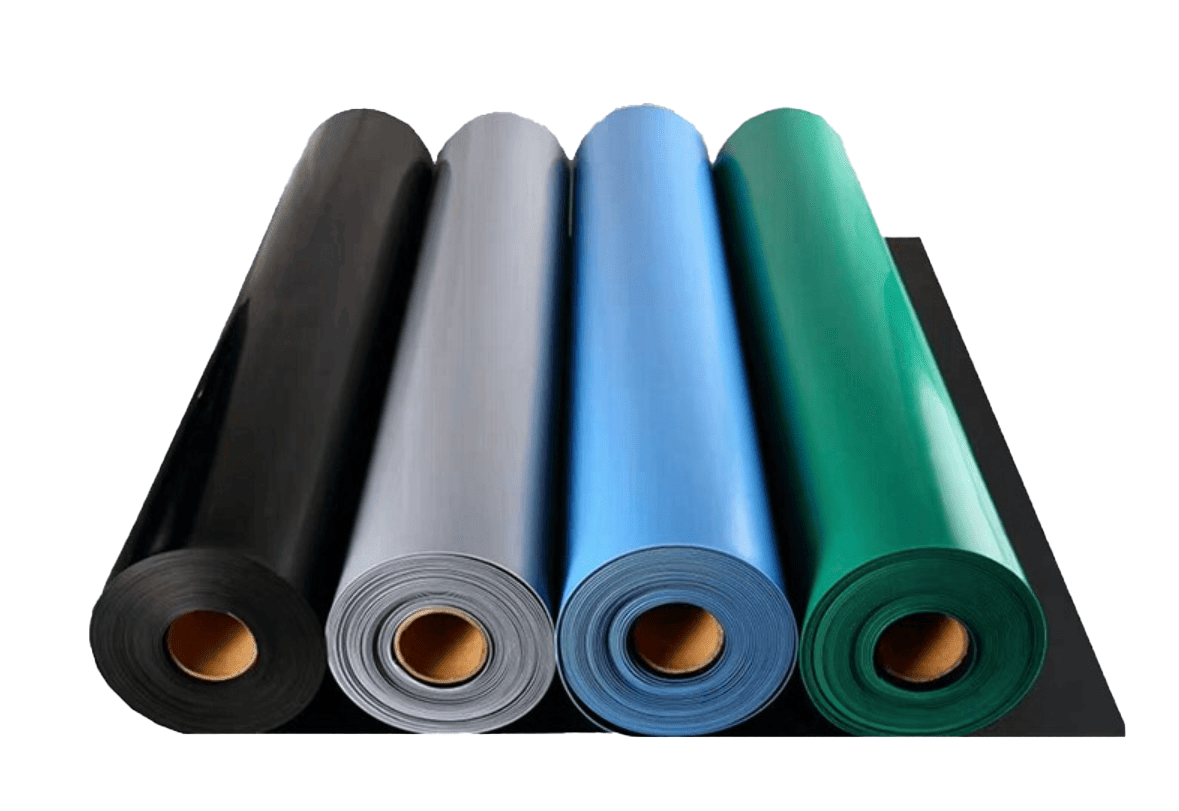

✔ ESD Mat Rolls – Best for custom sizing, large workspaces, and floor coverage.
✔ Pre-cut ESD Mats – Ideal for individual workstations and quick setup.

6️⃣ Grounding System Compatibility

✅ Ensure the mat has grounding snap buttons for proper connection.
✅ Use with ESD wrist straps, grounding cords, and footwear for full protection.

📌 Best ESD Mat for Your Needs

💡 Tip: Always check the mat’s resistance rating and ensure it is properly grounded!
