How to use anti static matting？
Using anti-static matting (ESD mats) properly is key to protecting sensitive electronic components
from static electricity. Here's a simple guide on how to use anti-static matting effectively:
What You Need:
Anti-static mat (table or floor mat)
Grounding cord or wire
Common point ground (CPG) or ground plug
Optional: ESD wrist strap (for extra protection)
How to Use an Anti-Static Mat:
1. Place the Mat Correctly

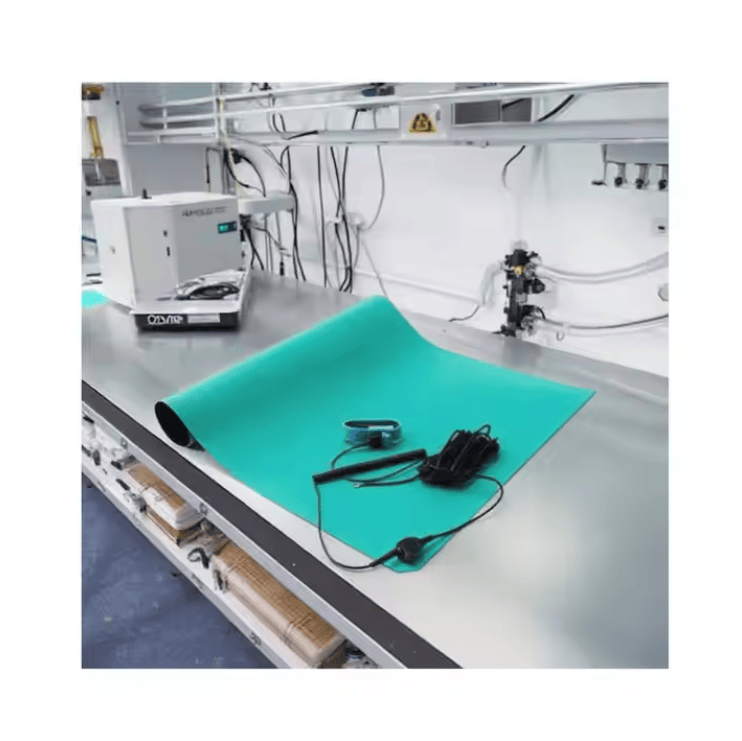

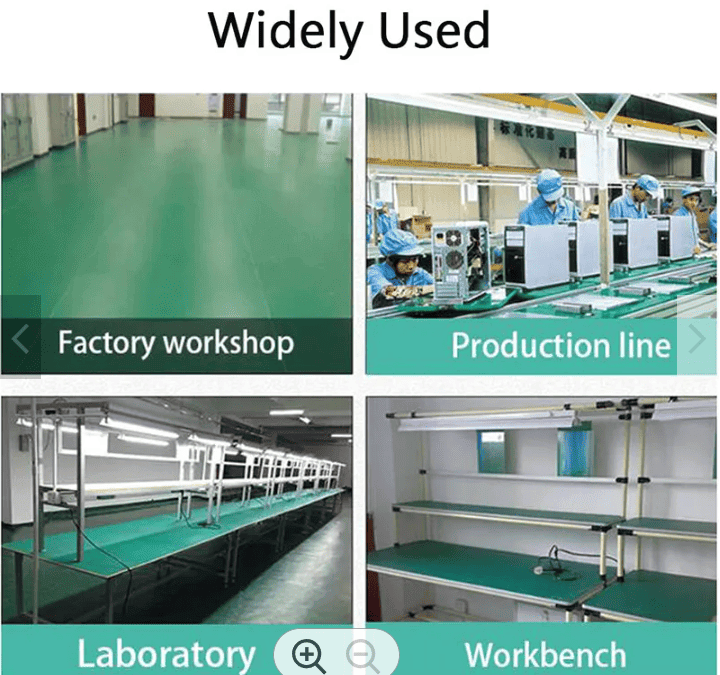

Worksurface mat: Lay it flat on your workstation, desk, or assembly bench.
Floor mat: Place in front of workstations where people stand.
2. Connect the Mat to Ground
Attach the grounding wire to the snap connector on the mat.
Plug the other end of the wire into a grounded outlet or a common point ground box.
This allows static charges to safely dissipate.
3. Check the Grounding
Use an ESD tester to verify that the mat is properly grounded.
Ensure the resistance is within safe ESD standards (typically 1MΩ to 10^9Ω).
4. Use an ESD Wrist Strap (Optional but recommended)
Wear the strap and connect it to the same ground as the mat.
This keeps you at the same potential as the mat, avoiding static discharge.
5. Keep the Mat Clean
Clean regularly using ESD-safe cleaners.
Avoid using alcohol or regular cleaners, which can damage conductivity.
Tips for Best Results
Do not place paper, cardboard, plastic, or fabric between the device and the mat.
Keep food, drinks, and metal tools off the mat when working with sensitive components.
Replace the mat if it becomes cracked, excessively worn, or loses conductivity.
Summary:
Connect the mat to ground, keep it clean and unobstructed, and pair it with a wrist strap if possible.
This ensures a static-safe environment for sensitive electronics.
