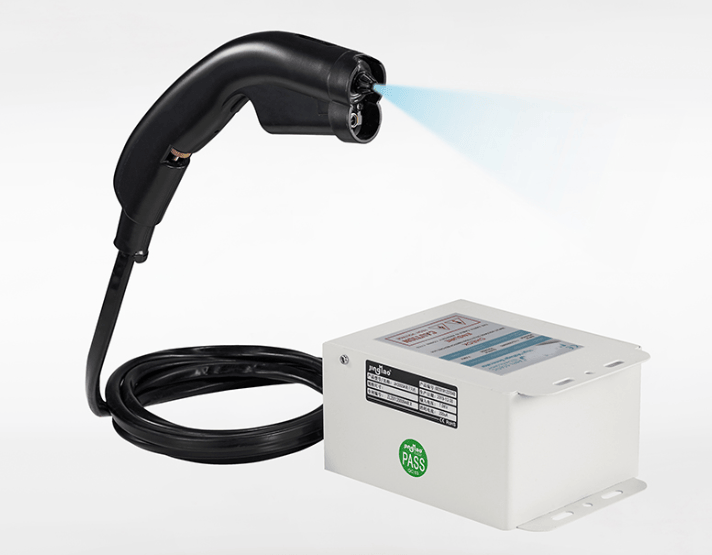

The JH2003A Ionizing Air Gun by Jinghao is a high-performance static elimination air gun that effectively removes static electricity and dust. It features low residual voltage and an integrated high-performance air filter, ensuring clean airflow. Designed to meet the stringent requirements of the microelectronics industry, it is particularly suitable for use in ISO Class 100 cleanrooms. The ionization range reaches up to 1 meter.
1️⃣ Compact and lightweight design for easy operation.
2️⃣ Rapid static elimination, making it effective for cleaning sensitive components and materials.
| Specification | Details |
|---|---|
| Input Voltage | 220V/50Hz or 110V/60Hz |
| Output Voltage | AC 4.6KV (JH1101A) |
| Power Consumption | 20W |
| Operating Temperature | -10℃ to +50℃ |
| Weight | Approx. 0.5kg (with cable) |
| High-Voltage Cable Length | 3 meters |
| Compressed Air Pressure | 0.3MPa – 0.8MPa |
| Airflow Speed | 3 – 10 m/s |
| Air Consumption | 5 m³/h (at 0.5MPa air pressure) |
| Ozone Emission | ≤ 0.03 PPM |
Test Voltage: 1KV – 100V
Ambient Temperature: 22°C
Humidity: ≤ 60%
Air Pressure: 0.6MPa
| Distance | Neutralization Time | Residual Voltage |
|---|---|---|
| 150mm | Positive: 0.8s Negative: 0.9s | ≤ ±35V |
📌 Notes:
Test results are based on the ME268A Electrostatic Comprehensive Tester.
Testing follows IEC-61340-5-1 A·6 standards.
Results may vary depending on environmental temperature and humidity.
