Using Method

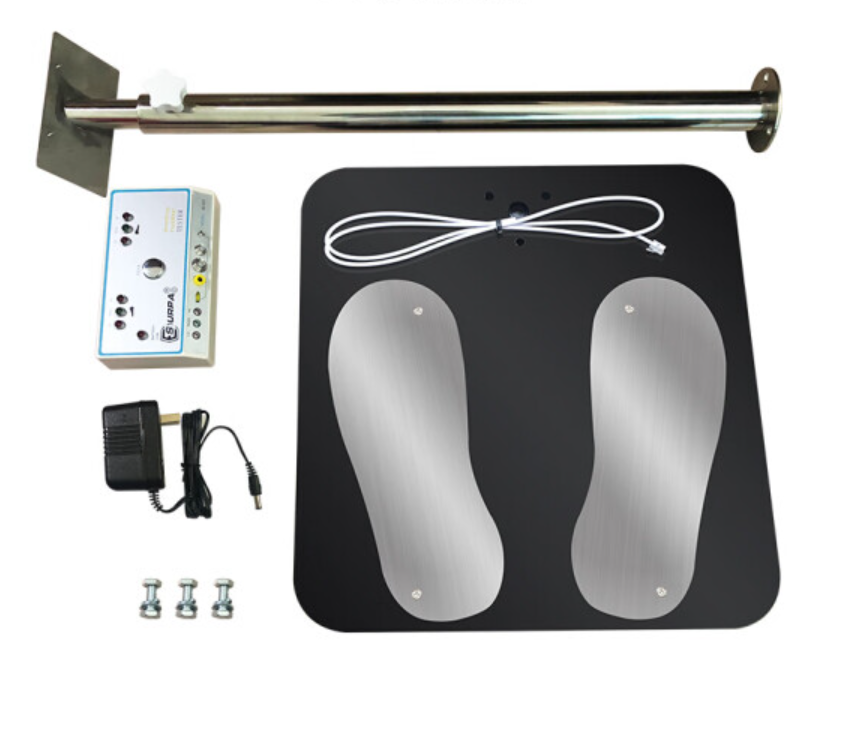

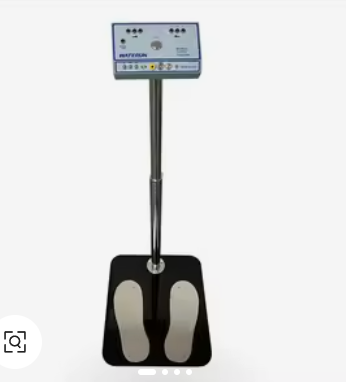

1. move the switch to "foot wear"in the left,puffing on ESD shoes,then stand on the test board, press the key "press to test",the indicator on the left is the resistance for the left shoe,and the right is the resistance for the right one
2.move the switch to "wrist strap",wearing wrist strap,and put the plug or alligator clip to jack(alligator clip pole),
press the key "press to test",the indicator on the right is the resistance for wrist strap.

Testing ESD wrist strap:
Dial "Selective switch"to "WRIST STRAP"&FOOTWEAR" key,connect wrist strap and plug socket or alligator clip into the outlet,then press"PRESS TO TEST"key,the value shown on the top middle place is the wrist strap resistance.

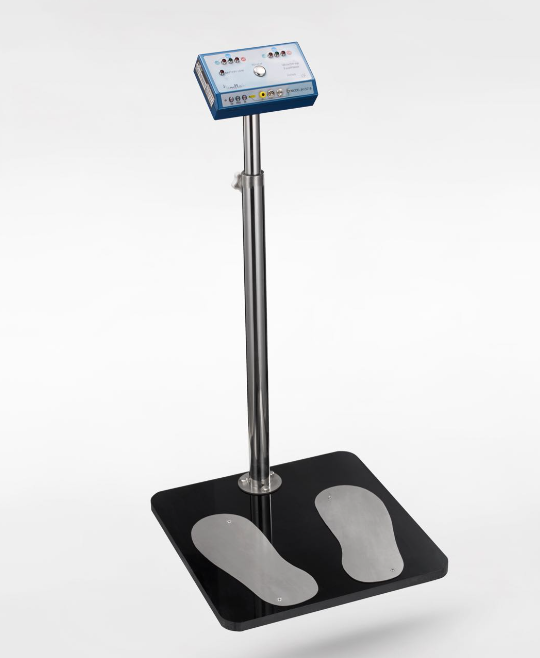

Test ESD shoe/heel grounder:
Dial"Selective switch"to"foot wear",then stand on the testing board after wearing ESD shoes,press"PRESS TO TEST"key.In this way,Left light will display the ground resistance of the left foot wearing ESD shoe & Right light will show the ground resistance of right foot wearing the ESD shoe.
