How Does an ESD Wrist Strap Tester Work?

How Does an ESD Wrist Strap Tester Work?

An ESD wrist strap tester is used to check if an ESD wrist strap is functioning properly by measuring its electrical resistance. It ensures that the strap provides a safe path for electrostatic discharge without being too resistive or conductive.

How It Works:

1️⃣ Wear the Wrist Strap – The user puts on the ESD wrist strap, ensuring proper skin contact.
2️⃣ Connect to the Tester – The wrist strap's grounding cord is plugged into the tester’s port.
3️⃣ Press the Test Button – The user presses a button or steps on a footplate (for dual wrist/foot testers).
4️⃣ Resistance Measurement – The tester applies a small test voltage (typically 9V-100V) and measures the resistance of the wrist strap and the user's body.
5️⃣ Pass/Fail Indication – The tester displays results using LED indicators or a digital screen:

• ✅ PASS (Green Light) – The resistance is within the acceptable range (usually 750kΩ – 35MΩ).

• ⚠ FAIL (Red Light - High Resistance) – The resistance is too high, indicating a broken cord or poor skin contact.

• ⚠ FAIL (Red Light - Low Resistance) – The resistance is too low, which could mean a short circuit or unsafe discharge.

Why Use an ESD Wrist Strap Tester?

✔ Ensures Proper Functioning – Prevents damaged or ineffective wrist straps from being used.
✔ Protects Sensitive Electronics – Ensures a controlled discharge of static electricity.
✔ Required for ESD Compliance – Many industry standards (e.g., IEC 61340, ANSI/ESD S20.20) require regular testing.

Would you like recommendations on ESD testers for different applications? 😊

Contact with ESD Factorys now! our ESD Wrist Strap Tester:

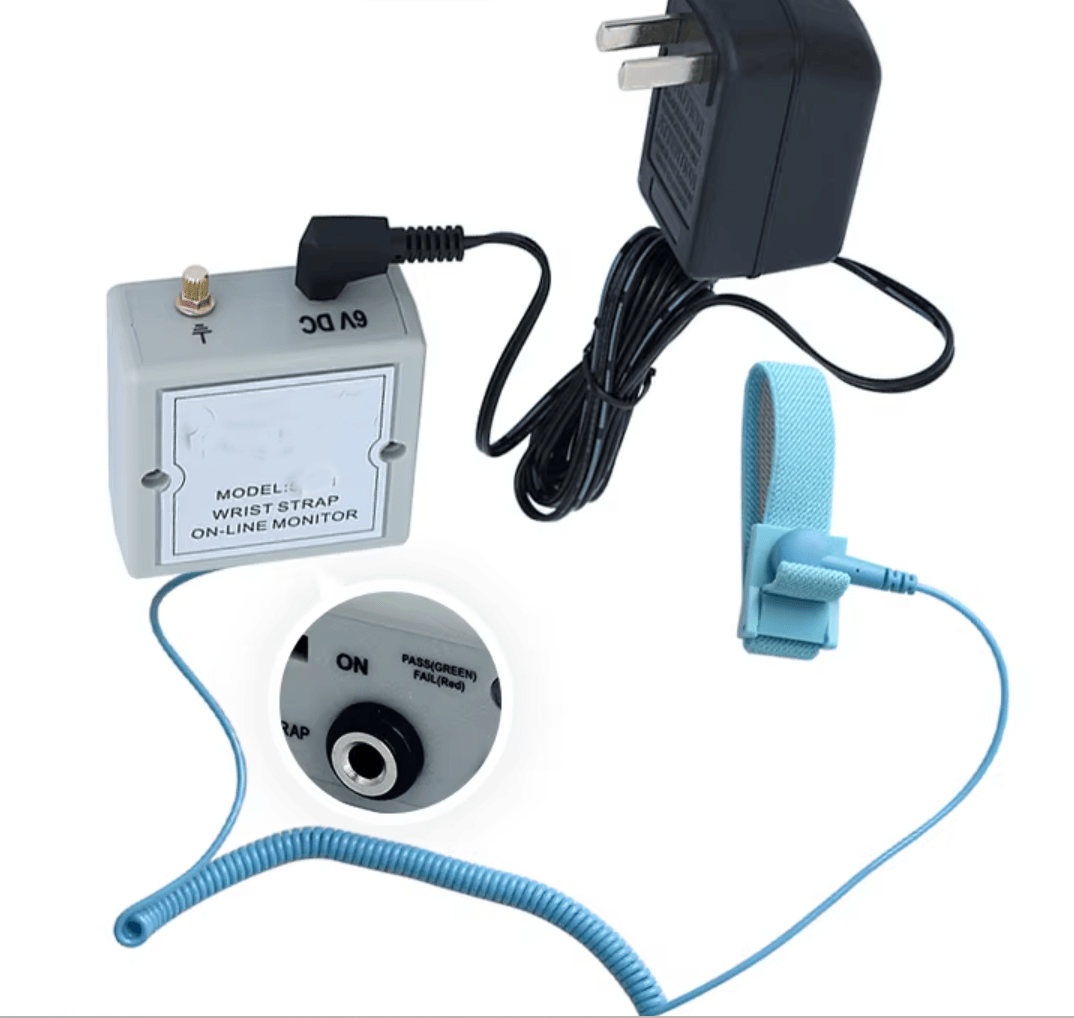

1. Real-time monitoring of the operator's electrostatic wrist strap wearing status andthe ground connection of the monitor's ground wire will automatically alarm if anyabnormal conditions occur.

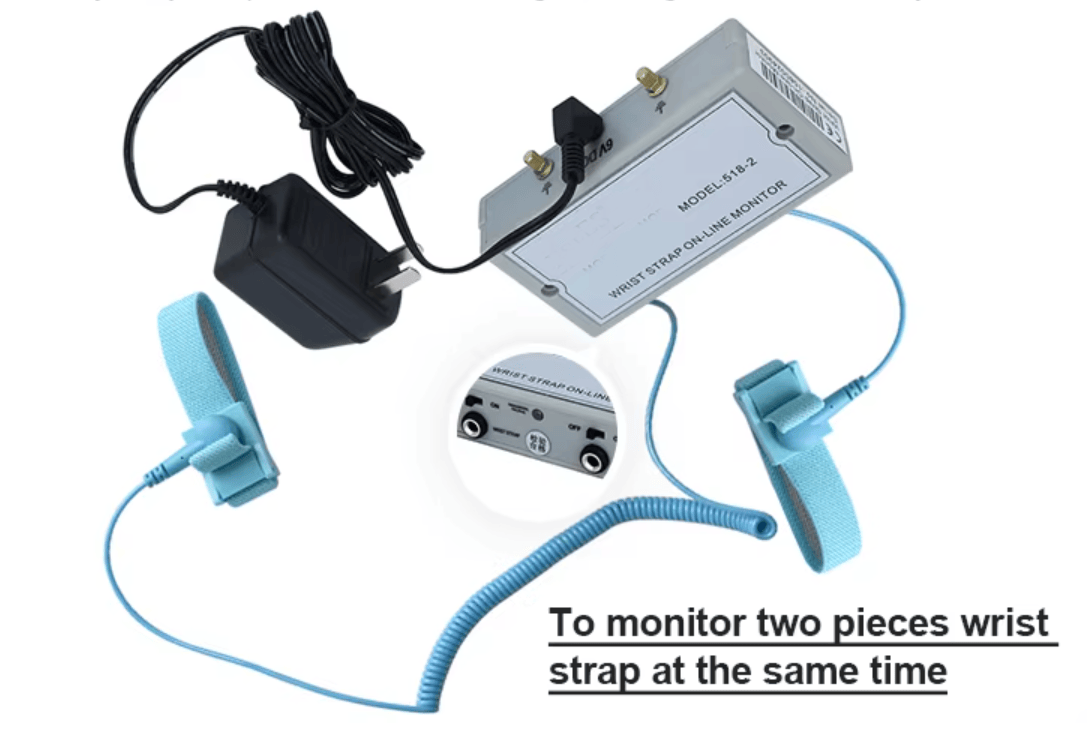

2. The monitor and the ground wire are connected in two ways. lf any one or bothconnections are abnormal, an alarm can be issued.The contact situation betweenthe ground wire on the ground and the ground wire on the monitor can be correctlydetermined to ensure real-time conduction effect.

3.Small and lightweight, convenient and easy to use, 9V voltage is safe and reliable.

4. Microcomputer chip control, strong anti-interference ability, no need for debugging.plug and play, no switch required.

5. Monitoring resistance value can be customized according to the design needsgenerally set to 750 K2 -30M (+5%), in line with international norms, but themonitoring parameters can be also set according to customer requirements;

6. This monitor requires a dual-circuit wrist strap, which ensures more reliablegrounding.

What types of ESD Wrist Strap Tester Work we make ?

There are several types of ESD Wrist Strap Testers that can be designed based on different applications and testing requirements. Here are the main categories of ESD wrist strap testers your company can manufacture:

1️⃣ Basic ESD Wrist Strap Tester (Single-Function)

🔹 Purpose: Tests wrist straps for proper grounding resistance.
🔹 Operation: User wears the wrist strap, plugs it into the tester, and presses a button.
🔹 Indications: LED or buzzer signals Pass (Green) / Fail (Red) based on resistance range.
🔹 Ideal for: Small-scale workshops, assembly lines, or personal use.

2️⃣ Dual ESD Wrist Strap & Footwear Tester

🔹 Purpose: Simultaneously tests wrist straps and ESD footwear.
🔹 Operation: User wears both the wrist strap & ESD footwear, then steps on the footplate and presses a button.
🔹 Indications:

• Pass (Green) – Proper resistance detected.

• Fail (Red) – Resistance too high or too low in wrist strap/footwear.
  🔹 Ideal for: Manufacturing floors, cleanrooms, and high-ESD-sensitive areas.

3️⃣ Smart Digital ESD Tester (Touchscreen or LCD Display)

🔹 Purpose: Provides precise digital readings of resistance values.
🔹 Features:

• Digital screen shows exact resistance in mega-ohms (MΩ).

• Built-in memory storage for test results.

• Can connect to a PC or network for tracking ESD compliance.
  🔹 Ideal for: ESD labs, cleanrooms, and quality control departments.

4️⃣ ESD Access Control System (Turnstile or Door Lock Tester)

🔹 Purpose: Restricts access to an ESD-protected area unless the wrist strap & footwear pass the test.
🔹 Operation:

• User tests wrist strap & footwear before entering.

• If Pass, the system unlocks the door or opens a turnstile.

• If Fail, access is denied, and user must replace faulty equipment.
  🔹 Ideal for: Large electronics factories, semiconductor facilities, and high-security ESD zones.

5️⃣ Portable Battery-Powered ESD Wrist Strap Tester

🔹 Purpose: Handheld and portable, used for quick ESD testing anywhere.
🔹 Operation:

• Small battery-operated device.

• Plug in the wrist strap, press a button, and get a quick Pass/Fail result.
  🔹 Ideal for: Field service technicians, mobile electronics repair, and temporary workstations.

Which ESD Tester is Best for Your Needs?

If your company manufactures ESD testers, you can offer custom models based on factory size, testing needs, and automation level. Would you like recommendations on specific designs or compliance standards? 😊
