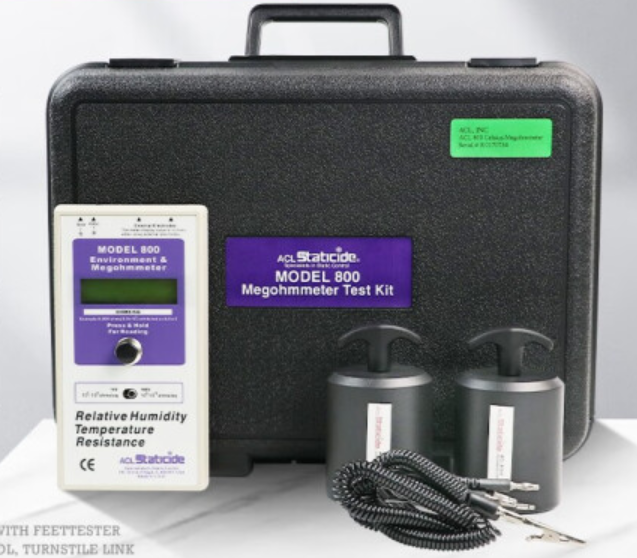

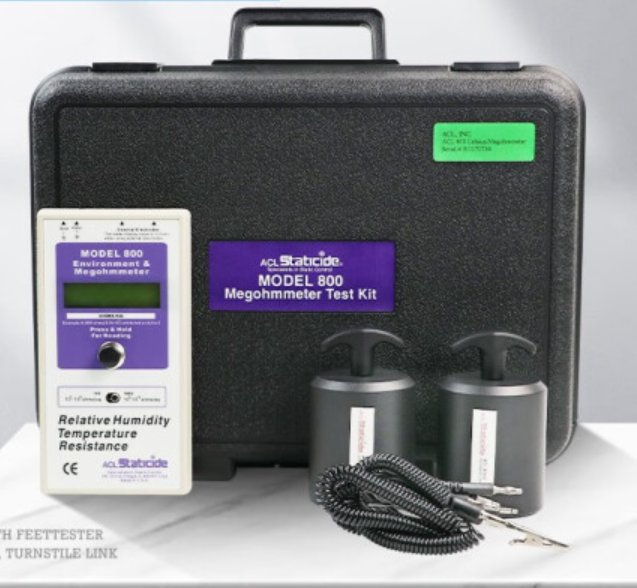

Product details:This megger is designed according to EOS / ESD, CECC, ASTM and UL test procedures. It is used to measure the
impedance or resistance of all conductive, antistatic and electrostatic discharge surfaces. It is easy to use, high quality and
high reliability. It can also measure the relative humidity and temperature affecting electrical performance. Measure impedance
temperature and humidity. "Humidity and temperature affect impedance, so it must be measured" Measure the surface impedance
10e3-10e12 ohms / m2, and measure the resistance 10e3-10e12 ohms. |
Product function description: |
Relative humidity: | 10% - 90% RH |
Temperature: | 32。F-100。 F(0℃-37.8℃) |
High-precision: | Full range 2*5-pound hammers
LCD digital display
It can measure table mats, floor coatings, paintwork, wristbands, work clothes, shoes (shoe covers), bags and containers |
Product physical characteristics: | 1.Measure impedance, temperature and humidity to comply with ESD standard, S4 1,S7. S11 and S11.11; |
2.0e3-10e12 ohm / range, which can test the electrical properties of various materials; |
3.0 V / 100 V measurement scale, suitable for worktable and ground specified in the standard; |

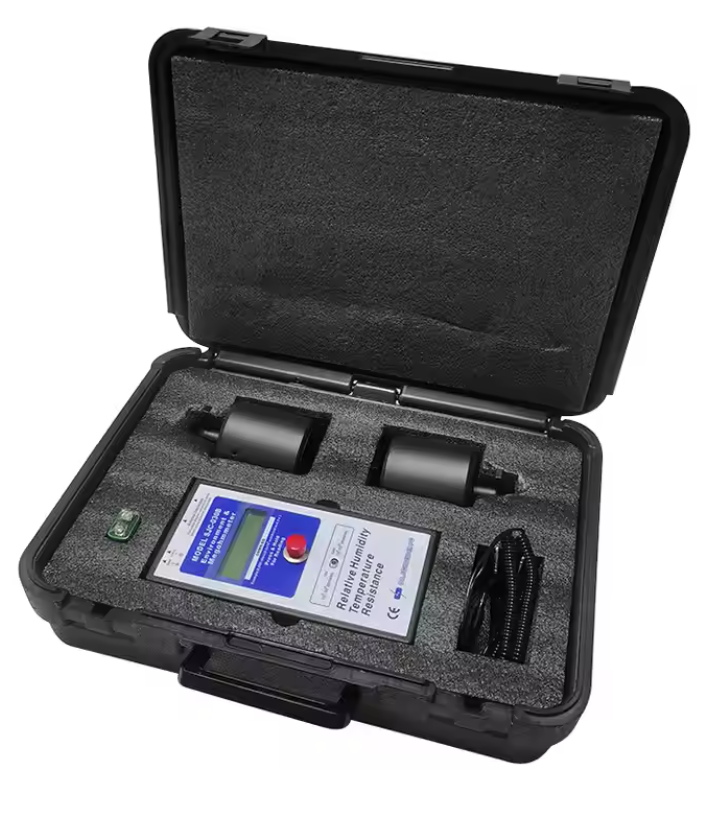

4.Plastic instrument protection box to prevent instrument damage; |
5. Light weight, simple packaging and easy to carry; |
6. LCD digital display, easy to use and easy to read; |
7. Automatic power-off function to prolong the service life of the battery; |
8. Automatically return to zero to ensure accuracy; |

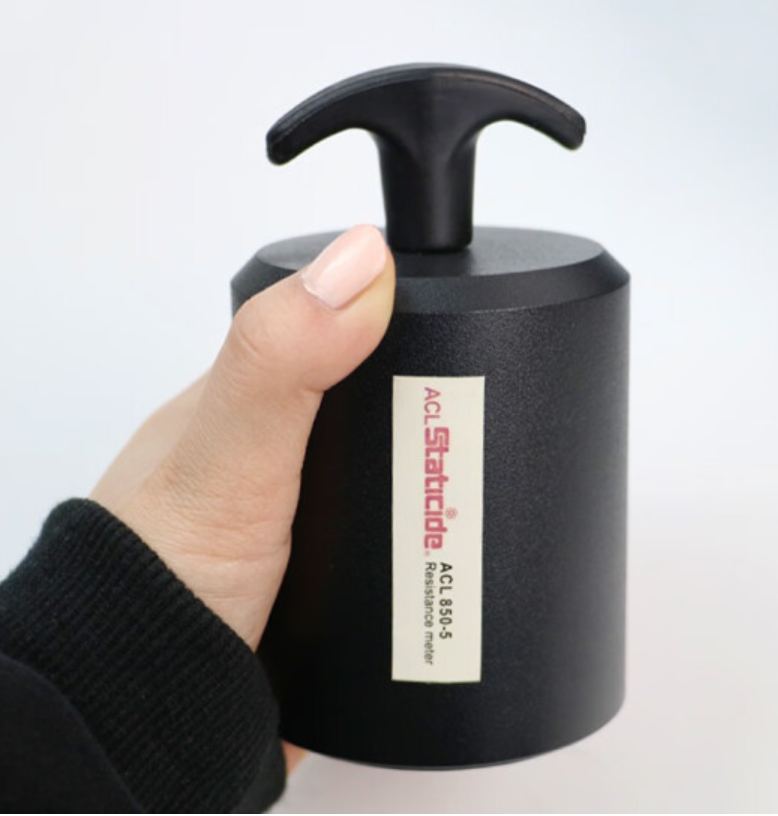

9.5-pound probe, all in accordance with ASTM, EOS and CECC standards. |
Operation manual:Before measurement, first ensure that the surface to be measured is clean and free of pollution |
Surface resistance measurement | This measurement method is in accordance with EOS / ESD-S.4.1 Measurement requirements are to measure the resistance between two
points independent of grounding. The measurement results obtained by this measurement method are related to the treatment of the
measured object, the distance between two 5-pound probes and other factors. Therefore, correct measurement procedures shall be
selected and tested under the same required measurement conditions each time. |
A. Insert the connecting plug into the two 35 mm sockets of the meter and connect the banana plug with the two 5-pound probes;B.
Place two probes on the surface of the object to be measured according to the measurement procedures;
C. Select the desired voltage value (10 volts or 100 volts) ;
D. Press "off" until the selected voltage value (10V or 100V) is displayed, continue to press "off" until the measured resistance
(in ohms), and the relative humidity and temperature are displayed on the LCD. |

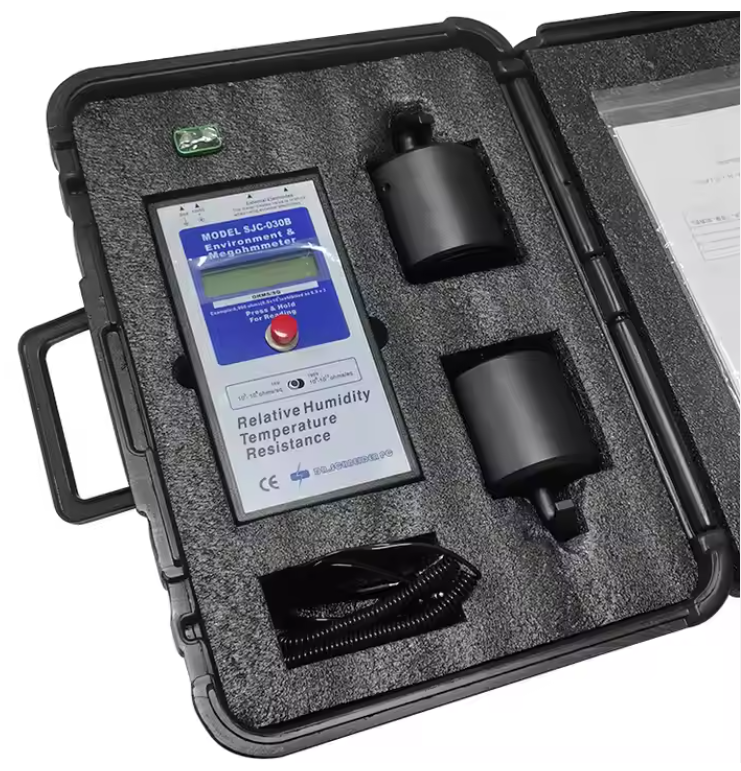

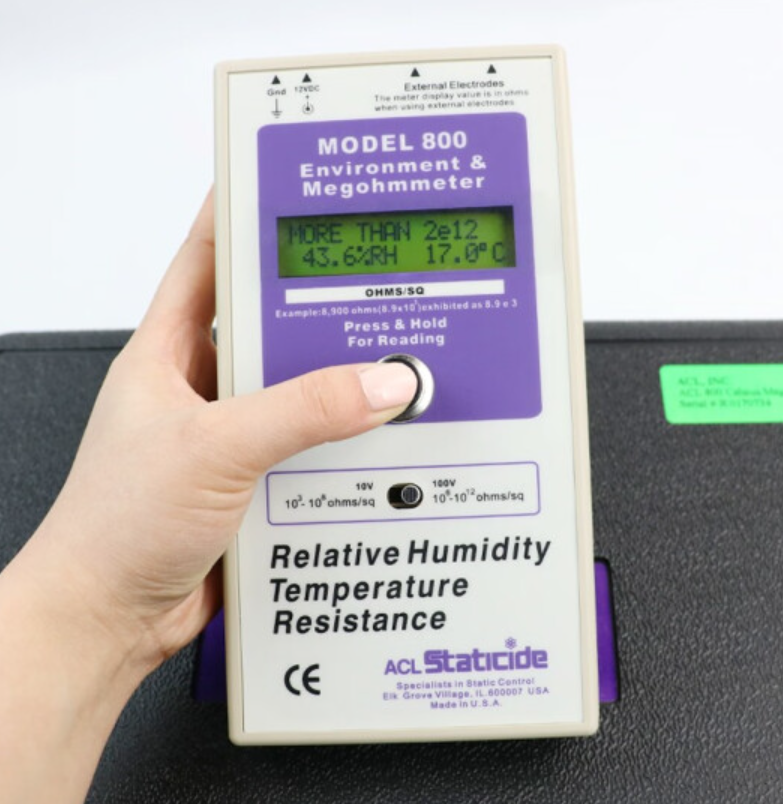

Different from other LED surface resistance testers, the LCD display of sjc-030b will display the measured accurate value. For
example, 27 megaohms (27 * 10e7) will be displayed as: 27e07ohms / sq. |
