What Are ESD Mats & How Do They Work?

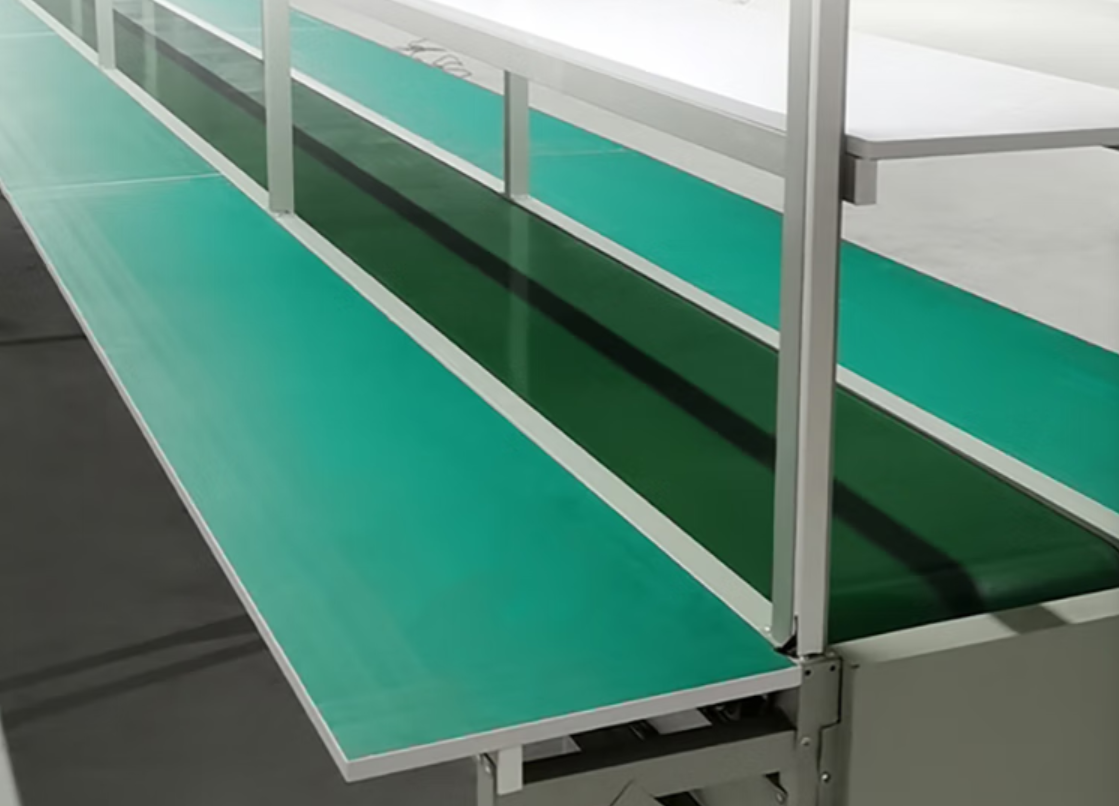

Anti-static station mat is a kind of workbench surface protection tool specially designed to eliminate or reduce static accumulation,

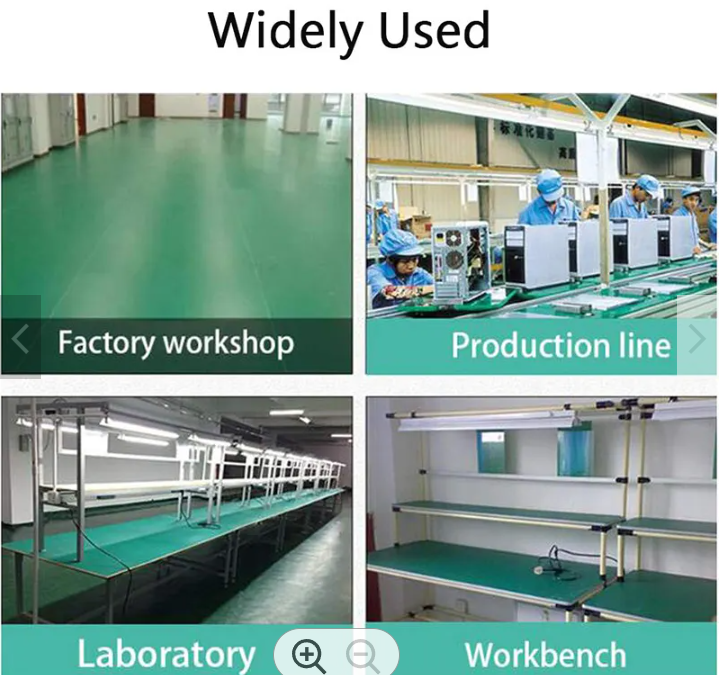

which is widely used in electronic manufacturing, maintenance, laboratory and other electrostatic sensitive environment.
Its core function is to protect electronic components, precision instruments, etc., from electrostatic discharge (ESD) damage.
The following is a detailed introduction and use of the anti-static radio pad:
First, the structure and principle of anti-static radio pad
1. ** material composition **

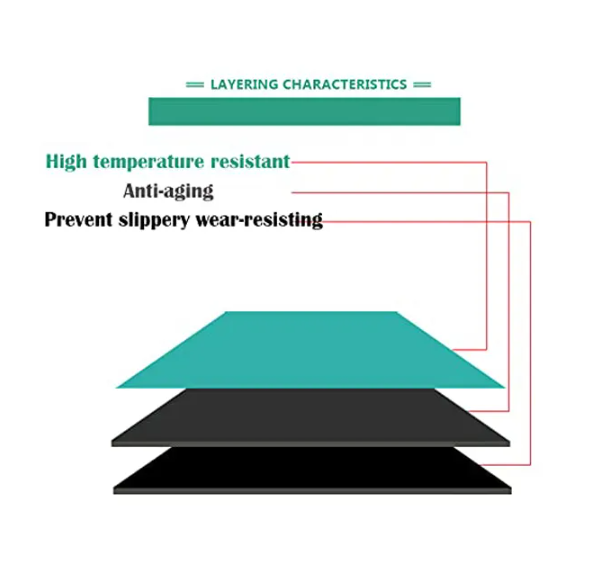

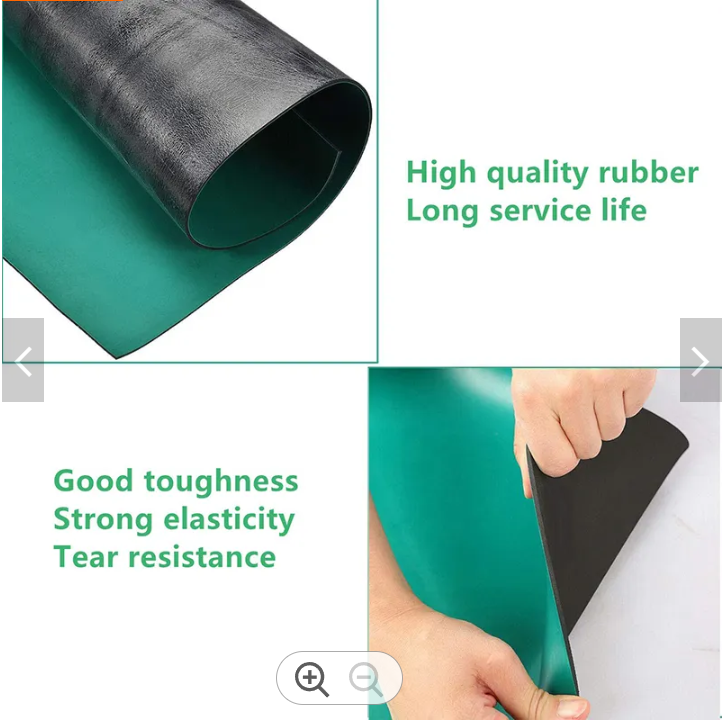

- Usually composed of multiple layers of material, the top layer is antistatic rubber, the bottom layer is conductive carbon fiber.
- The surface resistivity is generally between 10^6 and 10^9 Omega, which can slowly deflect static electricity and avoid short circuit caused by direct conduction.

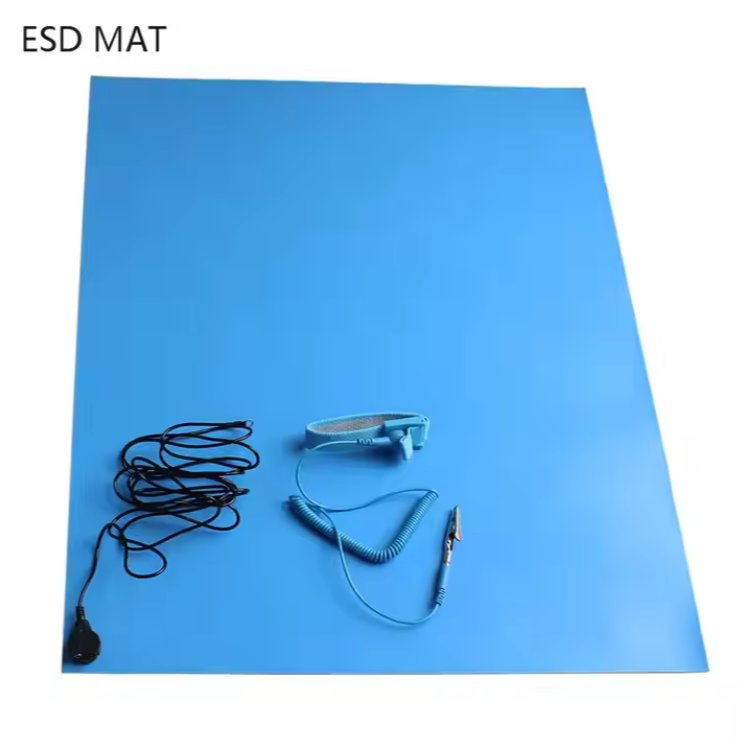

2. ** Working principle **
- Connect the table pad to the ground through the ground wire, release the electrostatic charge to the ground, and maintain the balance of the surface potential of the table.
- Use tools such as an ESD wrist strap and ESD container to form a complete ESD prevention system.
Second, the use of anti-static radio pad **
- ** Protect electronic components ** : Prevent electrostatic breakdown of sensitive devices such as chips and circuit boards.
- ** Improve work safety ** : Avoid accidents caused by electrostatic sparks in flammable and explosive environments.
- ** Meets industry standards ** : Meets electrostatic protection requirements in electronic manufacturing (e.g. ISO 61340), medical device assembly, etc.
Third, how to use the anti-static radio pad correctly? **
1. Installation steps **
- ** Step 1: Prepare the workbench **
Clean the table surface to ensure that there are no sharp objects or oil, to avoid scratching the mat or affecting the electrical conductivity.
- ** Step 2: Lay the mat **
Lay the mat flat on the work surface, the edge can be slightly drooped and fixed with tape (if long-term use is required).

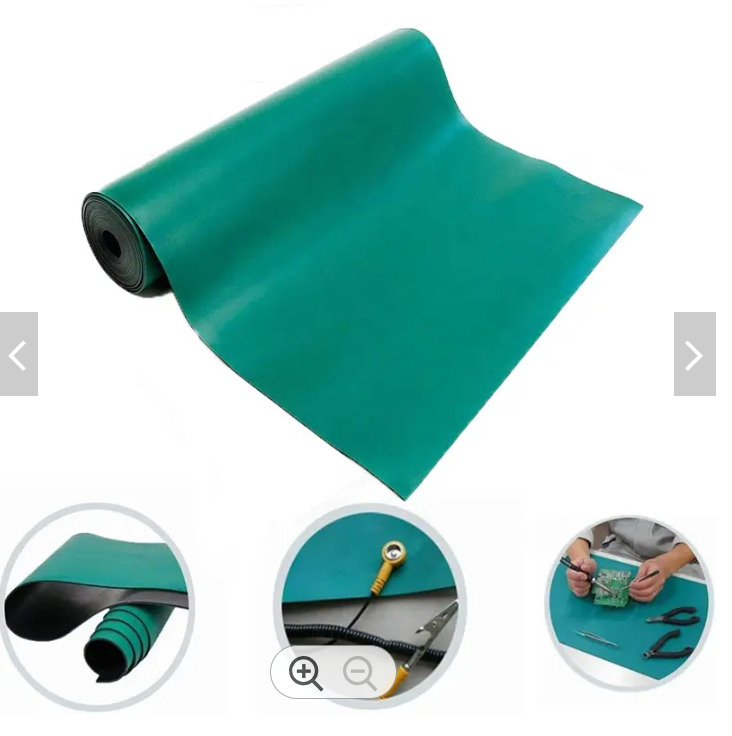

- ** Step 3: Connect ground cables **
- Connect the ground wire (usually a banana plug or alligator clip) of the pad to the dedicated ground terminal or ground post.
- ** Key Points ** : Ensure that the grounding resistance is less than 10^6 Omega (use a multimeter to check whether the grounding is effective).
- ** Step 4: Interconnect other ESD devices **
Connect the ESD wrist strap and tool box to the platform pad using a ground cable to form a complete loop.

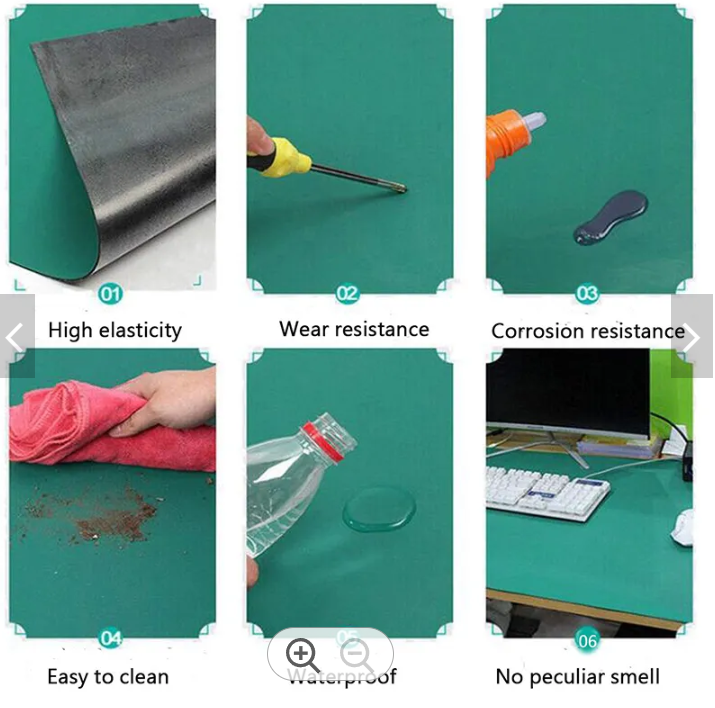

2. Use precautions **
- ** Avoid damage ** : Do not use sharp objects such as blades and nails to cut the surface of the pad.
- ** Regular cleaning ** : Wipe the surface with a neutral cleaner, avoid using alcohol or corrosive solvents.
- ** Do not cover insulation ** : Do not lay plastic sheets, ordinary tablecloths and other insulating materials on the mat.
- ** Environmental requirements ** : The recommended humidity ranges from 40% to 60%. A low humidity reduces the ESD effect.
3. Maintenance and testing **
- ** Monthly inspection ** : Use a surface resistance tester to measure the resistance value of the bench pad to ensure compliance with the standard.
- ** Grounding check ** : Periodically check whether the grounding cable is loose or oxidized, and replace the grounding cable if necessary.
- ** Replacement cycle ** : If the surface wear is serious, the resistance value exceeds the standard or cracks appear, it needs to be replaced in time.
Four, Frequently Asked Questions **
1.Q: Can anti-static radio pad be used without grounding? **
A: No! Ungrounded pads do not deflate static electricity and may exacerbate the risk due to charge accumulation.
2.Q: What is the difference between anti-static radio pad and ordinary rubber pad? **
A: Ordinary rubber pads are insulators, which will accumulate static electricity; Anti-static station pads actively release static electricity through conductive materials and grounding design.
3.Q: How to choose the size and thickness of the mat? **
A: According to the size of the table, the usual thickness is 2mm (taking into account durability and flexibility).
Five, summary
The anti-static station mat is the core component of the ESD protection system. To use the mat correctly, follow the process of laying, grounding, linkage, and periodic maintenance. Whether it is repairing a mobile phone, assembling a circuit board, or operating a precision instrument, standardized anti-static measures can significantly reduce the risk of electrostatic damage and ensure the safety of equipment and personnel.
