How to choose the right anti static mats ?
Choosing the right anti-static mat (ESD mat) depends on your work environment, the type of electronics you handle, and how you plan to ground it. Here's a simple guide to help you make the best choice:
1. Know Your Application
| Use Case | Recommended Mat Type |
|---|
| Electronics assembly/repair | Tabletop ESD mats |
| Standing workstations | Floor ESD mats |
| Cleanroom or sensitive environments | Cleanroom-grade ESD mats |
| High-voltage or heavy machinery areas | High-durability rubber mats |
2. Understand Mat Layers
Most ESD mats are either 2-layer or 3-layer:
| Layers | Description | Best for |
|---|
| 2-layer (rubber) | Durable, chemical/heat resistant | Industrial use |
| 3-layer (vinyl) | Top dissipative, middle conductive, bottom non-slip | Lab/office environments |
3. Check Surface Resistance
Look for mats with surface resistance in the range of 10⁶–10⁹ ohms:
4. Size & Thickness
Choose a size that covers your entire work area or walk zone
Common sizes: 24"×36", 24"×48", custom sizes available
Thickness: 2mm–3mm is standard; thicker mats offer more durability and comfort
5. Grounding
6. Certification & Compliance
Look for ESD mats compliant with:
7. Maintenance
Choose a mat that's easy to clean and resistant to wear, chemicals, and heat depending on your working conditions.
Need help choosing for a specific setting (office, lab, production line, etc.)? I can help you pick the best fit.
Our Anti static mats:

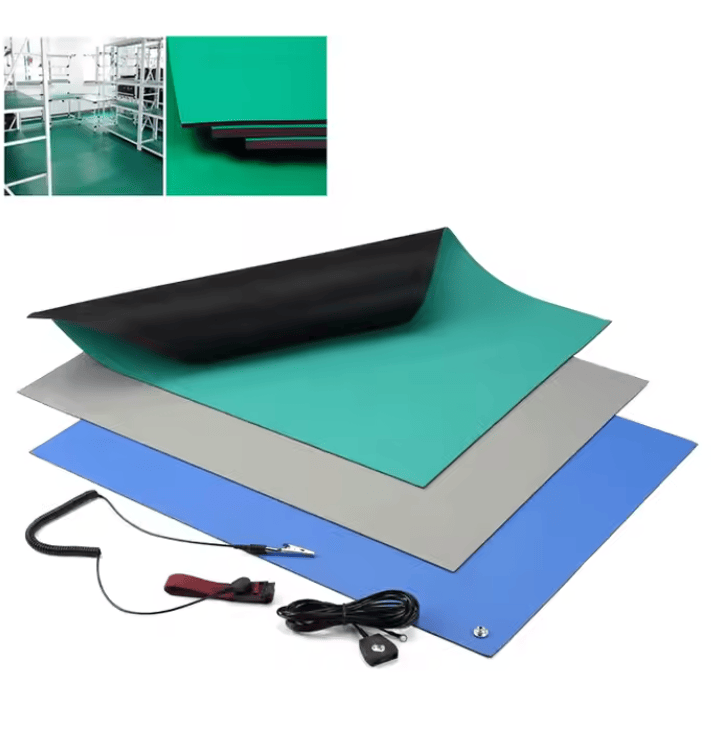

Green Blue Black Grey ESD Rubber Mat Anti Static For Workplace Table / Floor
|
Descriptions:

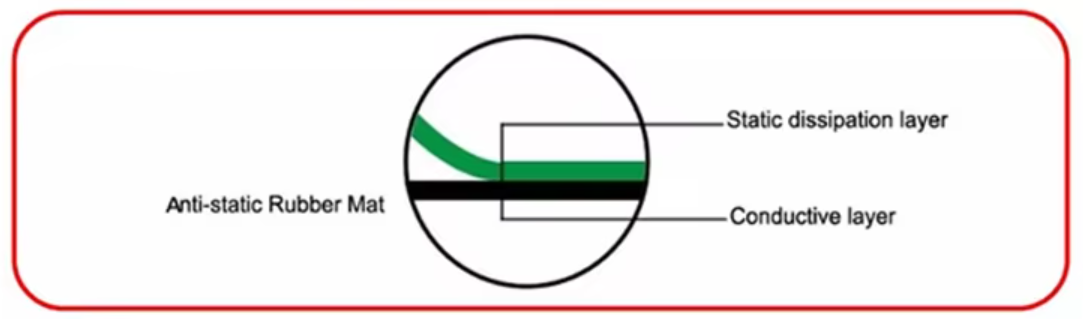

* ESD Rubber Mats are made of two layers with the top one as a static dissipative rubber layer, laminated to a black conductive bottom layer.
* Surface resistivity of the top layer is 108 – 109 ohms and bottom layer is 105 – 106 ohms.
* It offers excellent resistance to oil, grease and solvent.
* Its temperature resistance to 160 degree, could be resistant to hot solder, while ESD vinyl mats are suitable for general
electronics assembly whose temp resistance reach to 70degree around.
* Normal size(roll): 1.0mx*10mx*2mm(T); 1.2mx*10mx*2mm(T).
|
Features

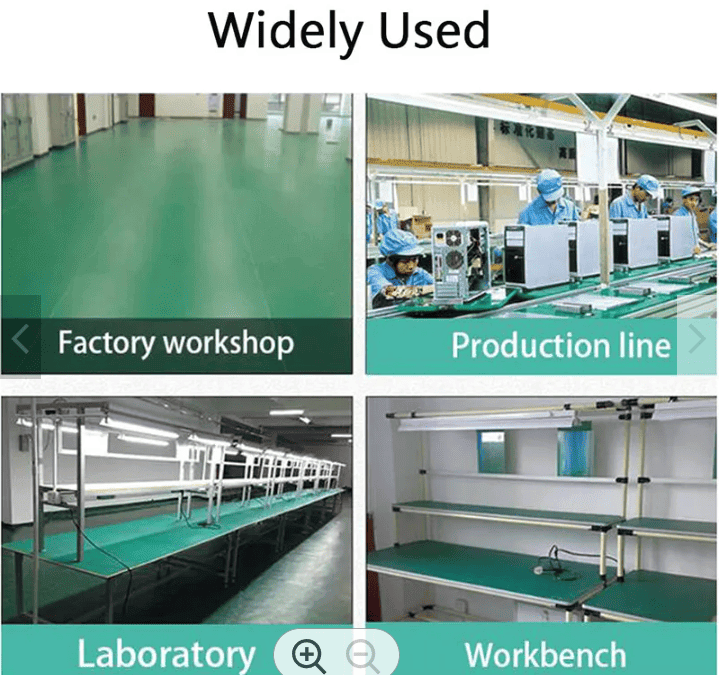

1, Anti-static, widely used in electronic assembly, cleanroom, semiconductor production lines work table/floor
2, It is available in rolls or ESD work surface mat kits which include a ground snap and common point ground. We can cut mats to special sizes, so please contact us if you have special size requirements.
3, Many colors for options, custom colors accepted. If you have a quantity no less than 300 square meters, just let us know the Pantone color, we will customize for you.
|
Some of the Characteristics are as follows: |
Dissipative Table Mat/Floor Mat | Specification | Color |
Static Dissipation layer | Surface resistance | 106-109 | 1.2mx*10mx*2mm(T)
1.0mx*10mx*2mm(T) | Blue, Grey, Green, Black |
Friction static potential V | <100 |
Conductive layer (black bottom) | Surface resistance | ≤105 |
Friction static potential V | <60 |
Static voltage attenuation period | 5000 – 500V | <1s |
Flame retardation | GB4609-84, FV-0 (less than 10S) |
Volume resistance | 105-108Ωcm |
Physical performance index of Dissipative Table/Floor Mat |
No. | Description | Test reference | Results |
1 | Tensile strength | GB 1040 | 3.6Mpa |
2 | Fracture elongation | GB 1040 | 188% |
3 | Tear elongation | GB/T 529 | 20.6KN/m |
4 | Rebound elasticity (the specimen is laminated with 6 layers of sheets) | GB/T 1681 | 14% |
5 | Impact embrittlement temperature (no cut) | GB 5470 | No damage |
at -25℃ |
6 | Permanent compression change rate, 70oC*22h, compression 25% | GB 10654 | 17.90% |
7 |
Hot air ageing | Tensile strength change rate |
GB/T 7141
| 8.00% |
Fracture elongation change rate | -3.80% |
Weight loss on heating | 1.08% |
Remarks | Test according to national standards: GB 1040, GB/T 529, GB/T 1671, GB 5470, GB 10654 and GB/T 7141. |
About Temp Resistance: |
Item | Permanent /degree | Flash /degree |
|
|
ESD Rubber Mat | 160 | 300 |
|
|
ESD Vinyl Mat | 70 | 120 |
|
|
