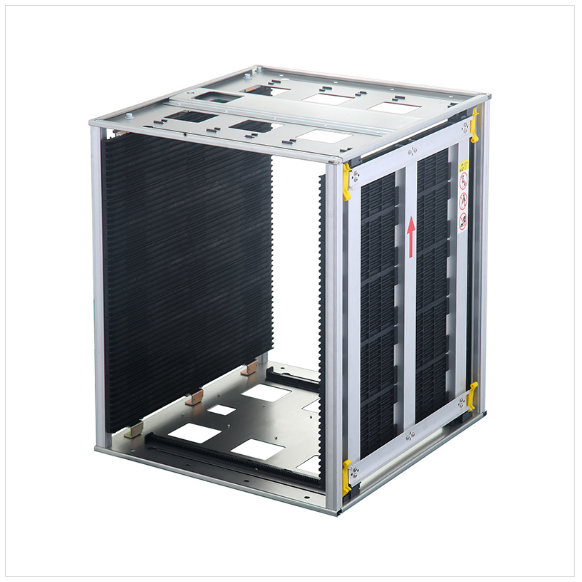

Antistatic Circulation Storage Esd Pcb Rack Adjustable Aluminum

Smt Esd Pcb Reel Board Esd Antistatic Magazine Racks Lock Clip

Details

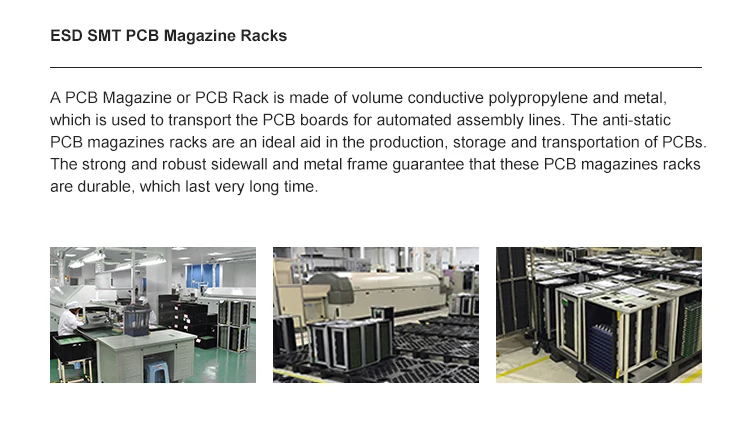

1) SMT magazine rack is designed for the manufacture, assembly, storage and transfer of PCB.

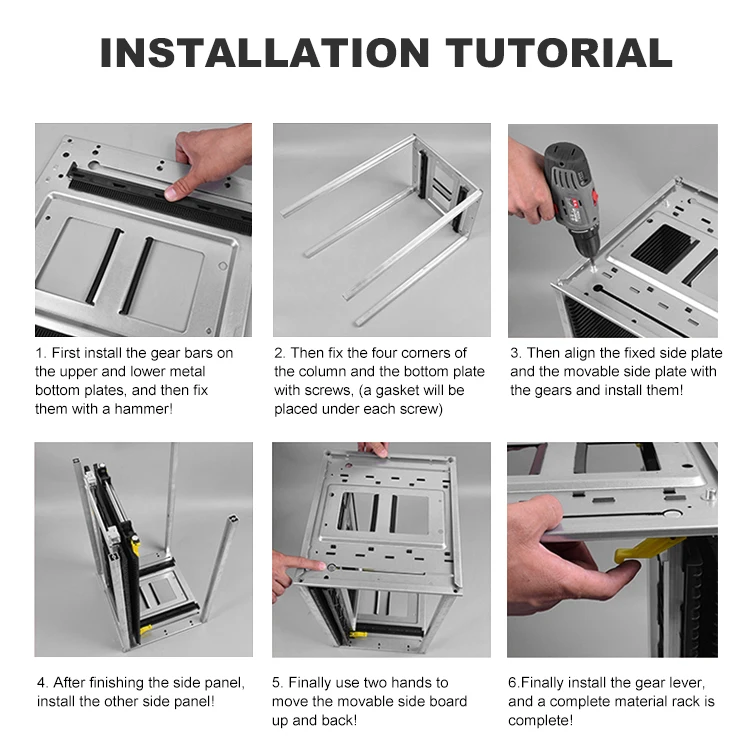

2) Screw and gear adjustment.

3) Common type (60℃) and heat-resistant type(120℃, 160~200℃) are available.
4) Surface resistance: 10e4~10e6 Ohm

 5) Base: Conductive plastic or stainless metal

Specifications

1)    Surface resistance: 104~106Ω
2)    Common type and heat-resistance type(120℃) are available
3)    Overall Size: 535*460*570mm
4)    50pcs of PCB plates can be stored
5)    Sizes of PCBs to be accommodated: 535*(50-390)mm
6)    Side guide slot: depth 3.5mm, width 5mm, pitch 10mm

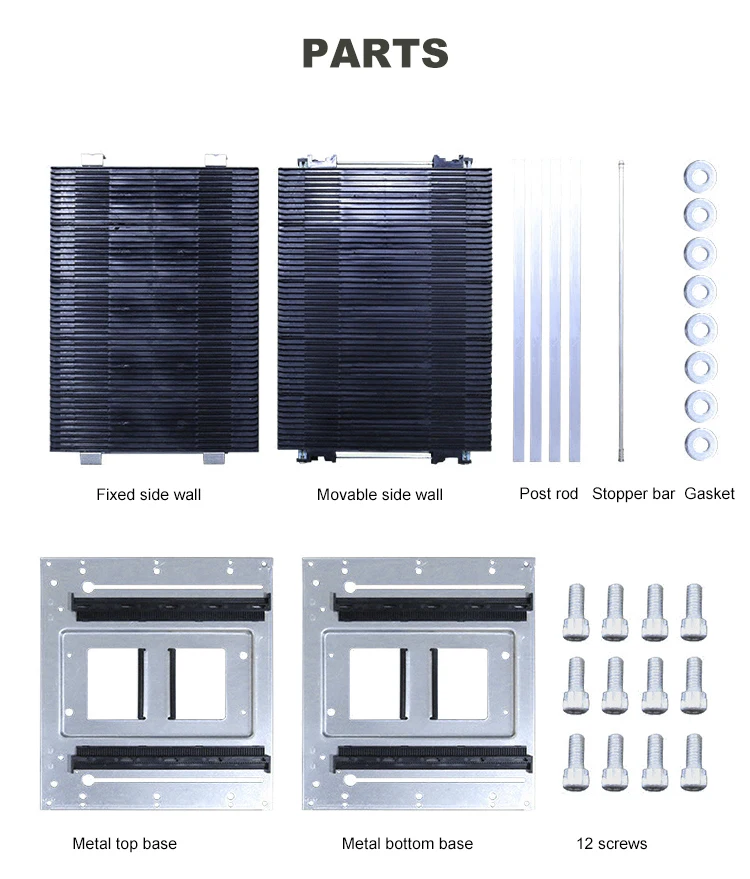

7)    The top and bottom boards are made of metal
8)    Gear track allow easy operation

Package

●  Pcs/ctn: 1
●  G.W./Ctn (Kgs): 11.5
●  Meas. (mm):560*560*130
●  Volume (CBM):0.041
