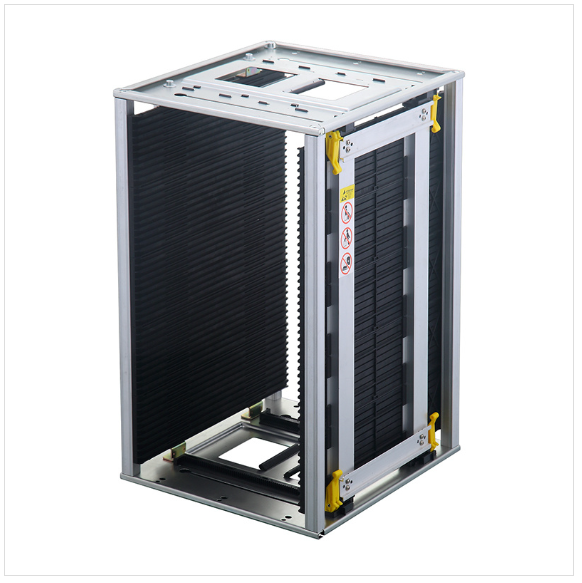

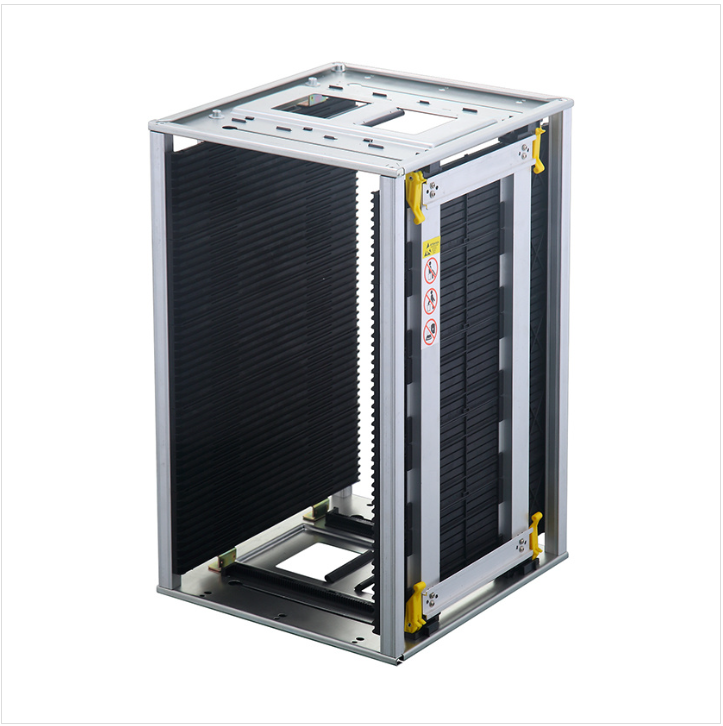

355*320*563mm SMT ESD Magazine Rack

103  SMT ESD Magazine Rack

Details

     1) SMT magazine rack is designed for the manufacture, assembly, storage and transfer of PCB.
     2) Screw and gear adjustment.
     3) Common type (60℃) and heat-resistant type(120℃, 160~200℃) are available.
     4) Surface resistance: 10e4~10e6 Ohm
     5) Base: Conductive plastic or stainless metal

Specifications

1)    Surface resistance: 104~106Ω
2)    Overall Size: 355*320*563mm
3)    50pcs of PCB plates can be stored
4)    Sizes of PCBs to be accommodated: 350*(50-250)mm
5)    Side guide slot: depth 3.5mm, width 5mm, pitch 10mm
6)    The top and bottom boards are made of metal
7)    Gear track allow easy operation

Packaging

●  Pcs/ctn: 1

●  G.W./Ctn (Kgs): 6.6

●  Meas. (mm):560*380*120

●  Volume (CBM):0.025

Customs Code

103 SMT ESD Magazine Rack

HS Code:3926909090
