What is ESD Mat Grounding?

ESD mat grounding is the process of connecting an ESD mat to a grounded point to safely discharge static electricity. This prevents electrostatic discharge (ESD) from damaging sensitive electronic components.

🛠️ How ESD Mat Grounding Works:

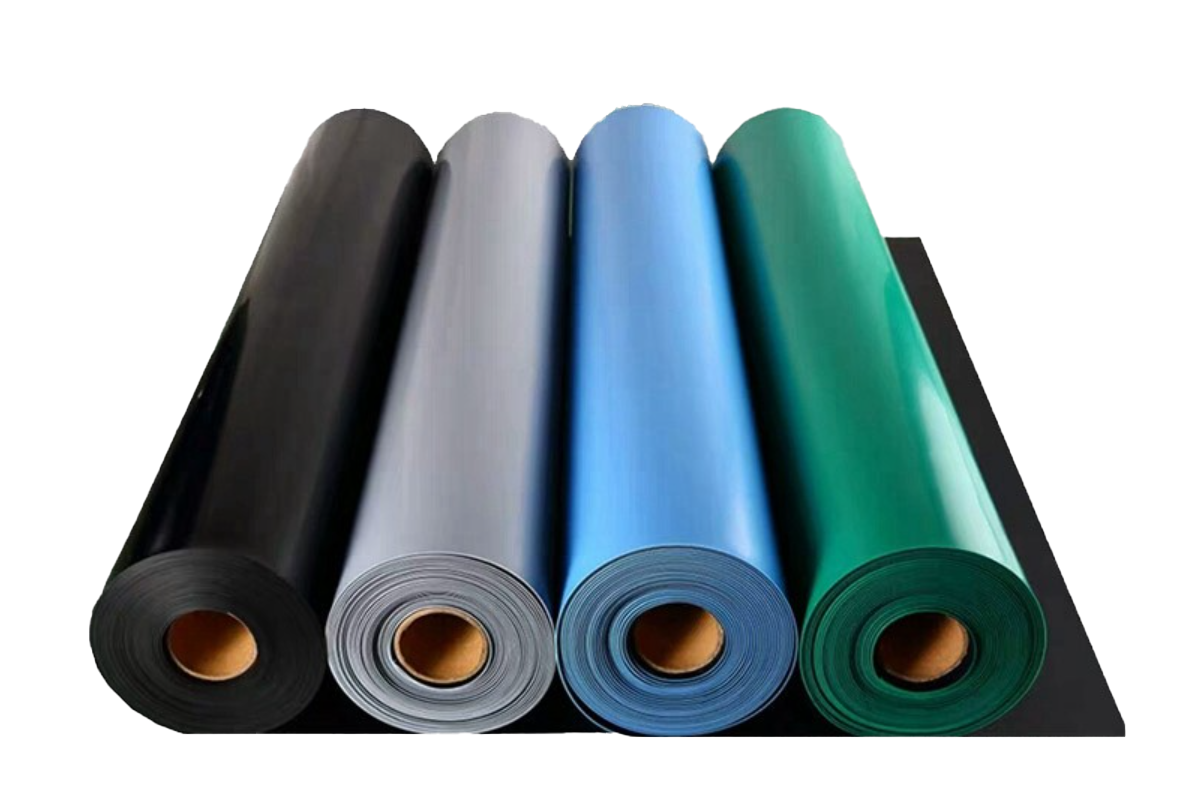

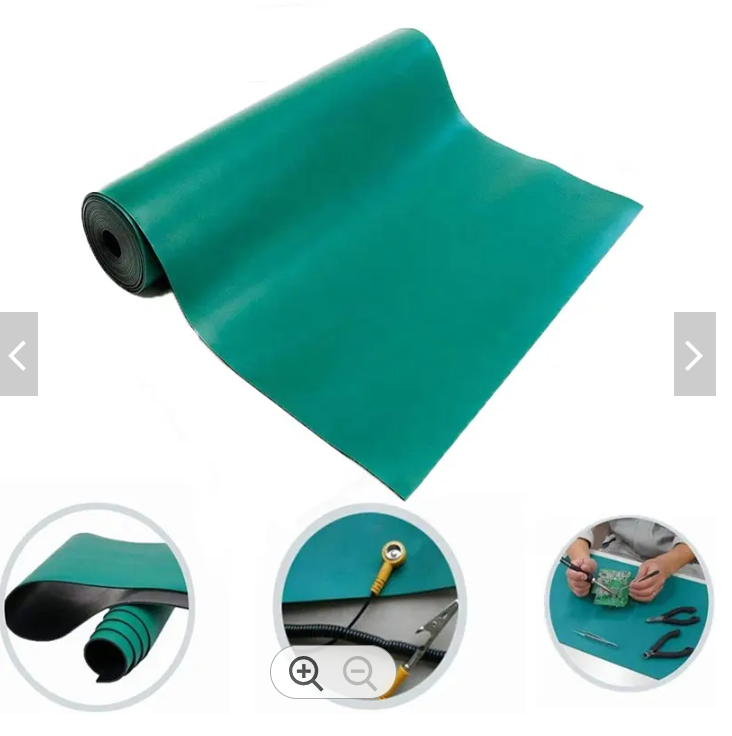

• ESD mats (workbench or floor mats) are static-dissipative or conductive materials.

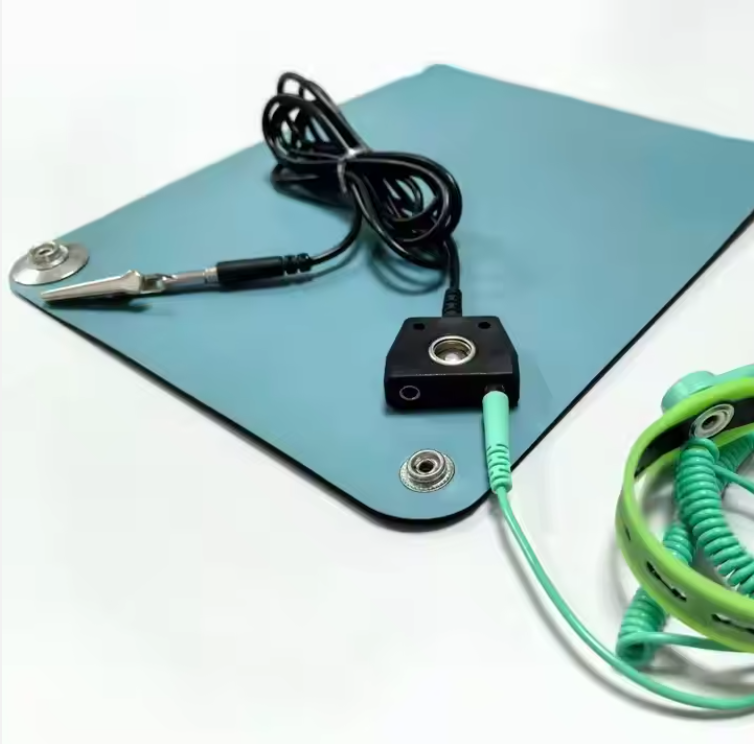

• A grounding cord connects the mat to an earth ground (e.g., electrical outlet ground, grounded metal).

• ESD wrist straps or footwear can also be connected to the mat for continuous grounding.

• This setup prevents static charge buildup and protects electronic devices.

📌 Where is ESD Mat Grounding Used?

🔹 Electronics Manufacturing & Repair – Protects microchips and PCBs.
🔹 Cleanrooms & Laboratories – Ensures a controlled static-free environment.
🔹 Semiconductor & Chip Production – Prevents static damage to delicate components.
🔹 Data Centers & IT Rooms – Protects networking equipment.
🔹 Medical Device Manufacturing – Ensures safe handling of sensitive electronics.

⚡ Why Use ESD Mat Grounding?

✅ Prevents ESD Damage – Safely dissipates static electricity.
✅ Ensures Operator Safety – Protects workers from static shocks.
✅ Complies with ESD Standards – Meets industry requirements for static control.
✅ Works with Other ESD Equipment – Connects with wrist straps, chairs, and flooring.

🔧 How to Properly Ground an ESD Mat?

1️⃣ Attach a grounding cord to the ESD mat.
2️⃣ Connect the cord to an earth ground (e.g., grounded outlet, grounding bus bar).

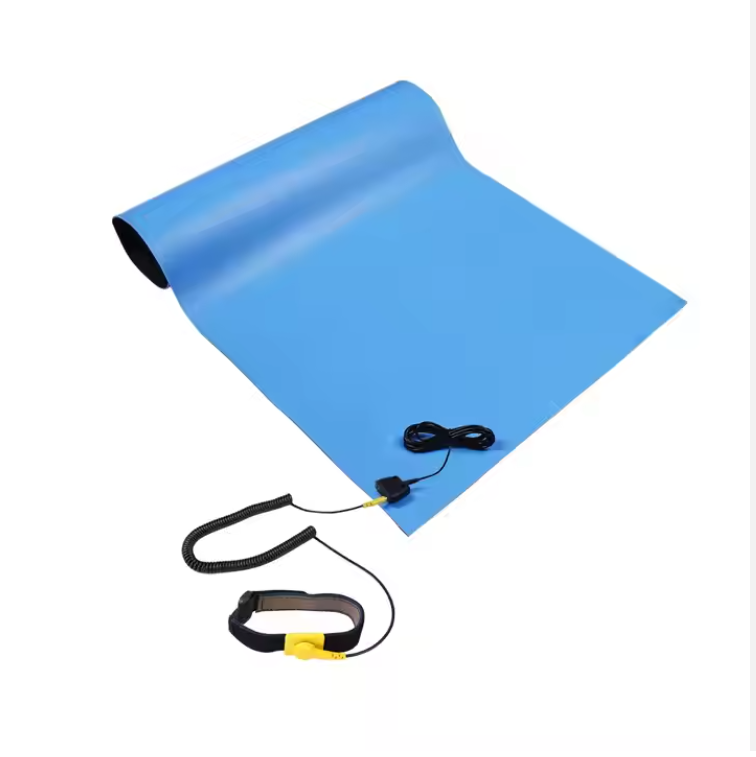

3️⃣ Use an ESD wrist strap and connect it to the mat for personal grounding.
4️⃣ Wear ESD footwear if using an ESD floor mat.
5️⃣ Regularly test the grounding setup to ensure proper functionality.

💡 Tip: ESD grounding must be checked periodically using an ESD tester to maintain a static-safe environment!
