MAT ESD

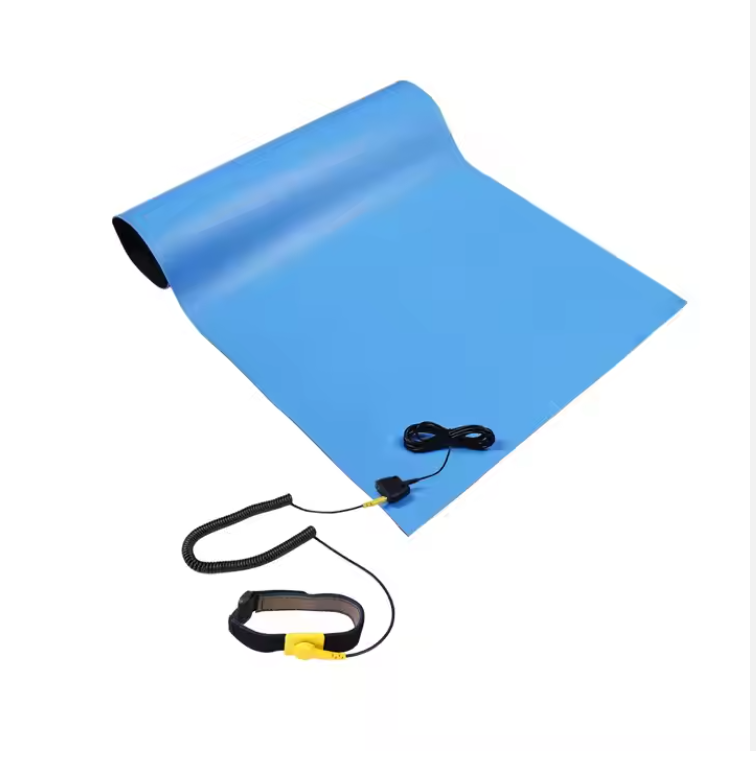

What is an ESD Rubber Mat?

An ESD rubber mat is a static-dissipative or conductive rubber mat designed to prevent electrostatic discharge (ESD) by safely dissipating static electricity. It is commonly used in ESD-sensitive environments to protect electronic components from static damage.

🛠️ Features of ESD Rubber Mats:

✔ Made of rubber with conductive or dissipative properties.
✔ Two-layer construction:

• Top layer: Static-dissipative for controlled charge removal.

• Bottom layer: Conductive for efficient grounding.
  ✔ Resistant to heat, chemicals, and soldering materials.
  ✔ Connected to ground using a grounding cord to discharge static safely.

📌 Where is an ESD Rubber Mat Used?

🔹 Electronics Workbenches & Assembly Lines – Protects circuit boards and microchips from static damage.
🔹 Repair Shops & Labs – Used for safe handling of laptops, phones, and PCBs.
🔹 Cleanrooms & Semiconductor Manufacturing – Prevents electrostatic buildup in sensitive environments.
🔹 Data Centers & IT Facilities – Protects networking equipment from static discharge.
🔹 Medical Device Manufacturing – Ensures safe assembly of electronic medical devices.

⚡ Why Use an ESD Rubber Mat?

✅ Prevents Static Buildup – Protects sensitive electronics from ESD damage.
✅ Provides Safe Grounding – Works with ESD wrist straps and footwear.
✅ Heat & Chemical Resistant – Ideal for soldering and assembly work.
✅ Durable & Long-Lasting – More resistant than vinyl ESD mats.

🔧 How to Use an ESD Rubber Mat?

1️⃣ Place the mat on a workbench or floor in an ESD-protected area (EPA).
2️⃣ Connect the mat to a ground point using a grounding cord.
3️⃣ Wear an ESD wrist strap and connect it to the mat.
4️⃣ Work safely with static-sensitive electronic components.

💡 Tip: Always test the mat’s resistance regularly to ensure it is properly grounded and effective!
