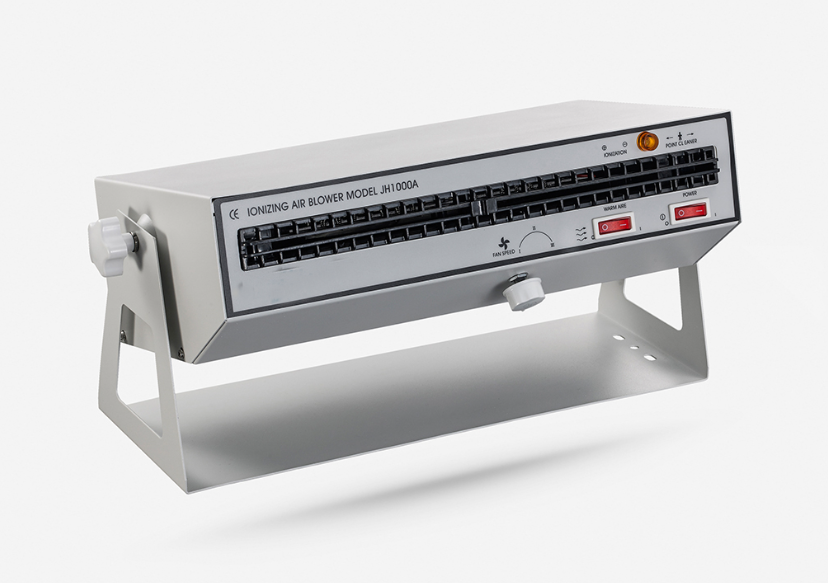

Electric Ionizing air Blower Fan horizontal type

Principle

1000A horizontal ion fan can produce a large amount of air with positive and negative charges, which can neutralize the charge on the object. When the charge on the surface of the object is negative, it will absorb the positive charge in the air stream, when the charge on the surface of the object is positive, it will absorb the negative charge in the air stream, so that the static electricity on the surface of the object is neutralized, to achieve the purpose of eliminating static electr1000A horizontal ion fan has an axial flow fan to provide wind power, and the wind power can be adjusted by the speed control switch in a large range.

The ionization device of 1000A horizontal ion fan: The ionization device forms a stable high voltage electric field under the action of high voltage and low current generated by the high voltage generation device, and the ionized air forms a ionizer, which is carried out by the air stream to the surface of the object to achieve the purpose of neutralizing static electricity. There is a special cleaner on the ionization device, which can remove the ash on the ionization needle and keep the ionization device working normally.

1000A horizontal ion fan eliminates static electricity function, can solve the production problems caused by static electricity, such as solving the dust problem caused by static electricity, the adhesion problem of plastic products processing, electrostatic exclusion caused by small parts jump problem.

Product characteristics

1. Quickly neutralize static electricity.

2. Large coverage area of ion airflow.

3. Wide range of wind regulation.

4. The ion balance is stable, and the ion regulator can be installed if necessary.

5. There are special ion emitter cleaners.

6. There are ionization indicators.

7. Cold air heating device can be installed if necessary.

8. Filter can be installed if necessary.

9. Angle adjustable.

10. 1000A horizontal ion fan has good grounding protection function.

Technical parameter

Work rate : 50W /250W(heating)

Input voltage : 220V/50Hz or 110V/60Hz

Output voltage : AC 5.6KV

Ion balance ≤±10V

Air output : 3.3 m - 3 / min or less

Effective range of ion wind zone : 590mm×1800mm

Amount of ozone produced: Less than 0.03PPM(measured at 15 CMS in front of the ion fan)

Ion fan noise : 50DB

Ambient service temperature : 0℃ to 50℃

Overall dimension:

390mm (L) ×210mm (W) ×115mm (H) (without support)

450mm (L) ×210mm (W) ×190mm (H) (including support)

weight :About 7.3kg (net weight)

Housing material :Cold-rolled sheet

surface :Baking paint

Features

With its new functions of electric shock protection and ion balance adjuster, it makes safer and easier for static elimination. The improved design of removable plastic mask also facilitates the maintenance work.

Neutralize ion electrostatic speed

Ion air cover area is large

Variable speed fan with wide range of air flow
Have special ion emission cleaner

Have a special air cooling heating device

Ionization detector

It has a good grounding protection.

Static Elimination Effect

 Remarks:

1) Distance measured in mm, decay time measured in second;

2) Test data available by using ME268A charged plate analyzer;

3) Test figures are subject to the variation of the atmospheric conditions.
