anti static fans

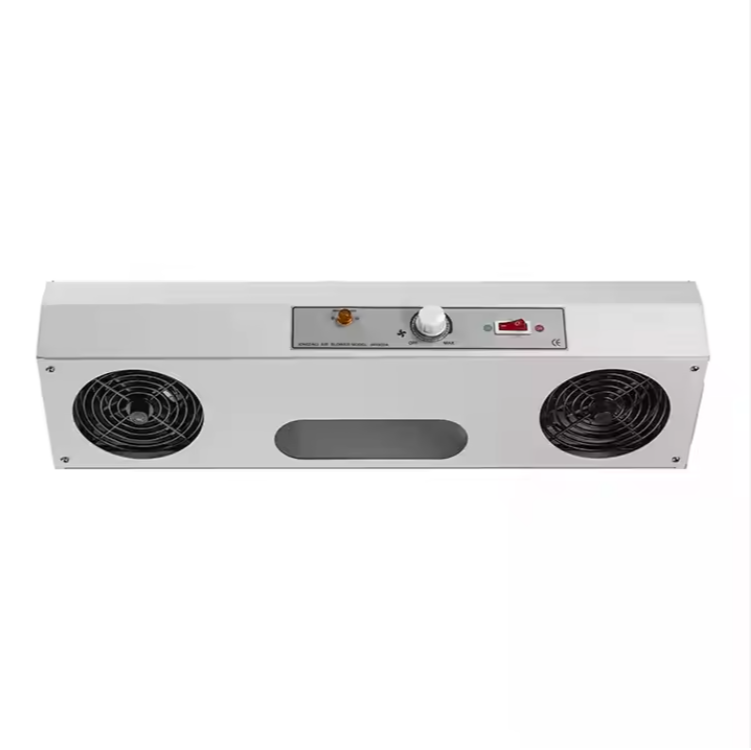

The 1201A-2 Dual-Head anti static fans uses an advanced closed-loop control system, which automatically adjusts the positive and negative ion output based on feedback from the sensor (metal grille) at the air outlet. This ensures excellent ion balance across a wide range of temperature and humidity conditions.
✅ Dual-Head Ionizing Design – Provides a wide electrostatic neutralization area.
✅ Automatic Ion Balance Control – Ensures consistent static elimination performance.
✅ Flexible Installation – Can be mounted on a stand or suspended for optimal positioning.
✅ Customizable Options – Can be modified with automatic cleaning and digital airflow display.
✅ High Efficiency – Fast neutralization time for effective static control.
| Specification | Details |
|---|---|
| Power Consumption | ≤30W |
| Input Voltage | 220V/50Hz |
| Current Consumption | 2A (at max airflow) |
| Airflow Output | Low: 60CFM (2.5m/s) / High: 150CFM (6.0m/s) |
| Effective Coverage Area | 300mm × 300mm × 900mm |
| Ozone Emission | ＜0.03PPM (Measured 15cm from fan) |
| Operating Temperature | -10℃ to +50℃ |
| Dimensions (Without Bracket) | 600mm (L) × 90mm (W) × 160mm (H) |
| Dimensions (With Bracket) | 660mm (L) × 90mm (W) × 160mm (H) |
| Residual Voltage | ≤±5V (At 300mm-600mm test distance) |
| Weight | 5kg |
| Housing Material | Cold-Rolled Steel |
| Surface Finish | Baked Paint |
anti static fans Test Conditions:
Test Voltage: 1kV → 100V
Ambient Temperature: 22℃
Humidity: ≤60%
| Test Distance | Neutralization Time (Positive Charge) | Neutralization Time (Negative Charge) | Residual Voltage |
|---|---|---|---|
| 300mm | 0.3s | 0.4s | ≤±5V |
| 600mm | 0.7s | 0.8s | ≤±5V |
🔹 Meets ESD Standards (Static elimination time measured from 1000V to 100V).
🔹 Tested using ME268A Electrostatic Comprehensive Tester.
🔹 Results may vary based on surrounding air temperature and humidity.
📌 Electronics Manufacturing – Protects PCBs, ICs, and microchips from static damage.
📌 Semiconductor Production – Ensures static-free environments for precision components.
📌 Medical & Optical Equipment – Prevents static-induced contamination.
📌 Plastic Injection Molding – Eliminates static-related adhesion issues.
📌 Printing & Packaging – Improves ink application and material handling.
The 1201A-2 Dual-Head anti static fans is an efficient, high-performance static elimination device, ideal for ESD-sensitive environments. With its fast neutralization speed, wide coverage, and automatic ion balance control, it is a reliable solution for industries requiring strict electrostatic control.
Would you like help selecting the best ionizing fan for your application? 😊
