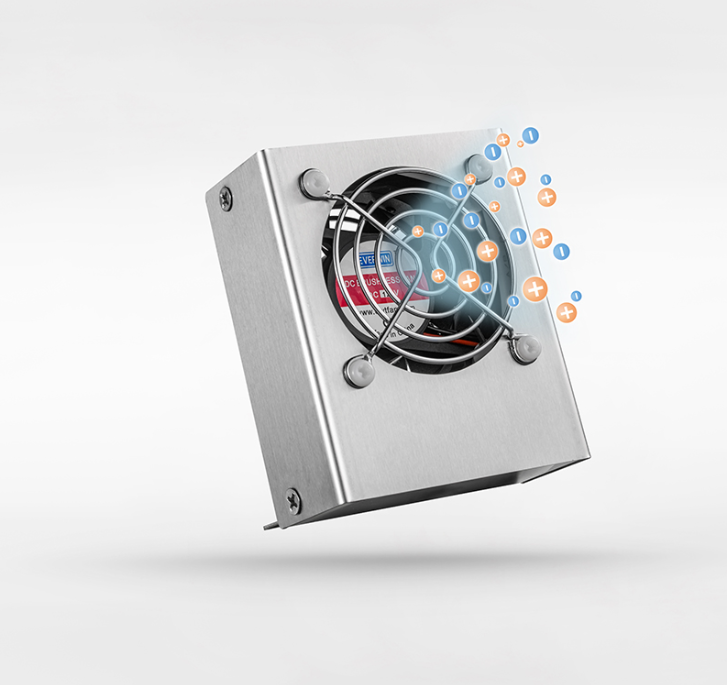

1201C Mini DC anti static fan
The 1201C Mini DC anti static fan generates a large volume of positive and negative ionized airflow, which neutralizes static charges on objects:
If the object is negatively charged, it attracts positive ions.
If the object is positively charged, it attracts negative ions.
This neutralizes static electricity and eliminates electrostatic-related issues.
✅ Compact & Lightweight – The smallest ionizing fan in the series, ideal for confined workspaces.
✅ Tabletop Design – Provides effective static neutralization for a single workstation.
✅ Portable & Stable Performance – Lightweight, easy to move, and delivers consistent ion balance.
✅ Closed-Loop Control System – Automatically adjusts positive and negative ion output for optimal balance.
✅ No Ion Regulator – Designed for simplicity and efficiency in electrostatic neutralization.
| Specification | Details |
|---|---|
| Power Consumption | ≤10W |
| Input Voltage | 220V/50Hz or 110V/60Hz |
| Current Consumption | 0.04A (at max airflow) |
| Airflow Output | High: 50CFM (2.5m/s) |
| Effective Coverage | 200mm × 200mm × 500mm |
| Ozone Emission | ＜0.03PPM (Measured 15cm from fan) |
| Operating Temperature | -10℃ to +50℃ |
| Dimensions (With Bracket) | 75mm (L) × 47mm (W) × 92mm (H) |
| Residual Voltage | ≤±20V (at 300mm test distance) |
| Weight | 0.5kg |
| Housing Material | Stainless Steel |
Test Conditions:
Test Voltage: 1kV → 100V
Ambient Temperature: 22℃
Humidity: ≤60%
| Test Distance | Neutralization Time (Positive Charge) | Neutralization Time (Negative Charge) | Residual Voltage |
|---|---|---|---|
| 300mm | ≤5s | ≤5s | ≤±20V |
🔹 Meets ESD Standards (Static elimination time measured from 1000V to 100V).
🔹 Tested using ME268A Electrostatic Comprehensive Tester.
🔹 Results may vary based on surrounding air temperature and humidity.
📌 Electronics Assembly – Protects PCBs, microchips, and semiconductor devices.
📌 Precision Manufacturing – Neutralizes static in optical, medical, and aerospace components.
📌 Plastic Processing – Reduces static-related adhesion and contamination.
📌 Printing & Packaging – Ensures smooth material handling and ink application.
The 1201C Mini DC anti static fan is a compact, efficient, and reliable solution for ESD-sensitive environments. It offers fast static elimination, easy portability, and a stable ion balance, making it ideal for small workstations and precision tasks.
Would you like recommendations on selecting the best ionizing fan for your needs? 😊
