Ionising Air Gun

Ionising Air Gun

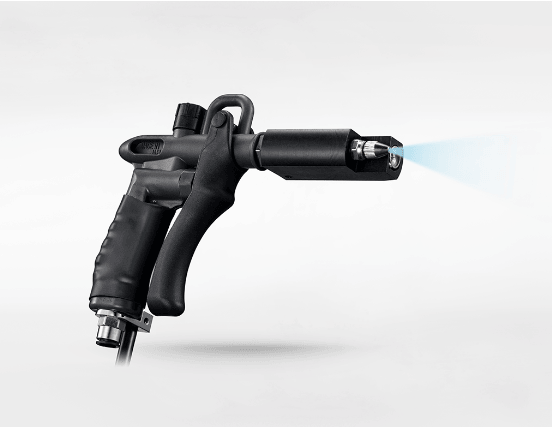

2002A Ionizing Air Gun

1️⃣ Working Principle

The 2002A Ionizing Air Gun generates a high-speed ionized airflow containing positive and negative ions to neutralize static electricity on object surfaces.

• If an object's surface is negatively charged, it attracts positive ions from the airflow.

• If an object's surface is positively charged, it attracts negative ions, eliminating static electricity.

• The high-speed compressed air also removes stubborn dust and particles from surfaces.

The ionization device operates under high voltage and low current, creating a stable high-voltage field to ionize air. The ionized air is carried by compressed airflow to the target surface, effectively neutralizing static charges.

2️⃣ Key Features

✅ Compact and Lightweight – Easy to handle and operate.
✅ Fast Static Elimination – Ideal for cleaning small, sensitive parts.
✅ Inductive Design – Ensures shock-free operation, with separate airflow and high-voltage circuitry.
✅ High Efficiency – Performance improves when used with an adjustable ionizing power supply.
✅ Adjustable Airflow – The gun has a built-in airflow regulator for precise control.
✅ Ergonomic Design – Made of plastic material, providing a comfortable grip.

3️⃣ Technical Specifications

4️⃣ Test Results

Test Conditions:

• Test Voltage: 1KV → 100V

• Environment Temperature: 22°C

• Humidity: ≤60%

• Air Pressure: 0.6Mpa

🔹 Tested using ME268A Electrostatic Comprehensive Tester.
🔹 Complies with IEC-61340-5-1 A·6 standard.
🔹 Results may vary due to environmental temperature and humidity changes.

5️⃣ Applications

📌 Electronics Manufacturing – Prevents static damage to PCBs, IC chips, and semiconductor components.
📌 Precision Assembly – Ensures static-free handling of optical and medical instruments.
📌 Plastic & Injection Molding – Eliminates static adhesion of plastic parts.
📌 Automotive & Aerospace – Removes dust and prevents static-related defects in painting and coating applications.
📌 Printing & Packaging – Ensures uniform ink application and prevents paper misfeeding due to static.

Conclusion

The 2002A Ionizing Air Gun is an efficient static removal tool designed for electronics, precision manufacturing, and industrial cleaning. With its fast neutralization, ergonomic design, and adjustable airflow, it provides effective static elimination and dust removal, ensuring higher product quality and process reliability.
