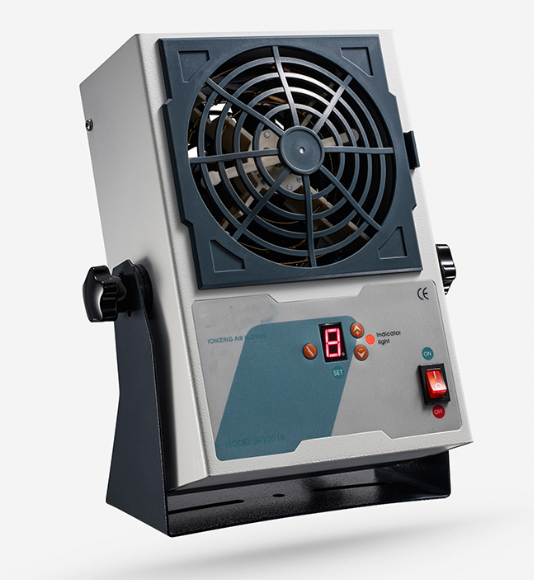

Digital AC automatic cleaning ion fan

Digital AC automatic cleaning ion fan

Principle

1001B single-head AC ion fan is a special equipment to eliminate static electricity, is Jinghao ion fan series of automatic cleaning one, single-head AC ion fan is desktop design, with easy installation, smooth work, eliminate static electricity fast characteristics. It can provide an overall neutralizing electrostatic effect of the working surface used by the operator.

1001B single-head ion fan can produce a large amount of air with positive and negative charges, which can neutralize the charge on the object. When the charge on the surface of the object is negative, it will absorb the positive charge in the air stream, when the charge on the surface of the object is positive, it will absorb the negative charge in the air stream, so that the static electricity on the surface of the object is neutralized, to achieve the purpose of eliminating static electricity.

The 1001B single-head ion fan has a small fan to provide wind power, and the wind power can be adjusted by the speed control switch in a large range.

Ionization device of JH1001B single head ion fan: ionization device under the action of high voltage and low current generated by high voltage generation device, forms a stable high voltage electric field, ionized air forms a ionizer, which is carried out by the air stream to the surface of the object to achieve the purpose of neutralizing static electricity. There is a special cleaner on the ionization device, which can remove the ash on the ionization needle and keep the ionization device working normally.

The eliminating static electricity function of 1001B single-head ion fan can solve production problems caused by static electricity, such as solving the problem of vacuuming caused by static electricity, the bonding problem of plastic products processing, and the problem of small parts jumping caused by electrostatic exclusion.

Product characteristics :

1. Small size, light weight, portable design, Angle gear design, can be adjusted 180 degrees.

2. Quickly neutralize static electricity.

3. The ion airflow covers a large area.

4. Wide range of wind regulation.

5. The ion balance is stable, and the ion regulator can be installed if necessary.

6. Automatic ion emitter cleaner.

7. Have an ionization indicator.

8. Cold air heating device can be installed if necessary.

9. Filter can be installed if necessary.

10. 1001B single-head ion fan has good grounding protection function.

Technical parameter

Work rate :≤30W

Input voltage : 220V/50Hz

Current consumption : 3A (Maximum wind speed)

Air output:

Low speed:60CFM 2.5m/s

High speed :150CFM 6.0m/s

Effective coverage : 300mm×300mm×900mm

Ozone content :< 0.03PPM (measured 15cm in front of ion fan)

Ambient service temperature : -10℃ ~ + 50℃

Overall dimensions (without support) : 154mm(L) ×85mm(W) ×228mm(H)

Overall dimensions (including support) :215mm(L) ×100mm(W) ×242mm(H

Residual voltage : ≤±10V (test distance: 300mm-600mm)

weight :2.7 kg

Housing material : Cold-rolled sheet

surface: Baking paint

Electrostatic test results:

Test condition

Test voltage: 1kv ~ 100v Ambient temperature: 22℃ Temperature: ≤60%

Test distance : 300mm and  600mm

Neutralization time : 0.3 s and  0.9 S

negative: 0.3 s and  0.7 S

Residual voltage :≤±10V
