Digital display DC ion fan

Digital display DC ion fan:

Principle

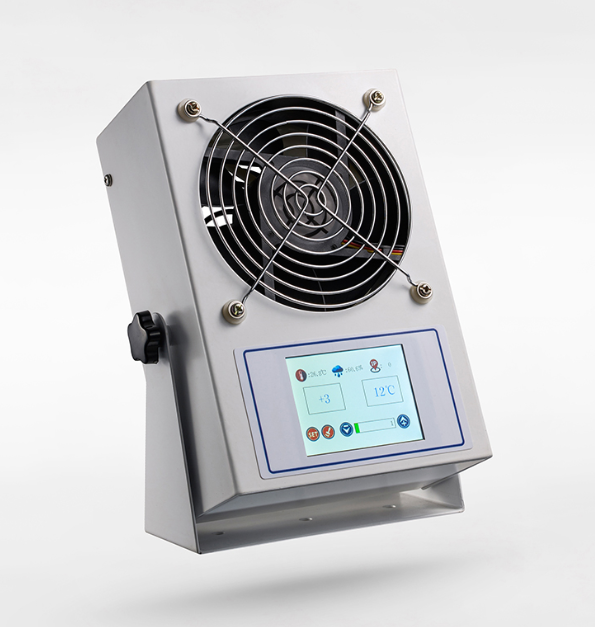

The Intelligent Ionization System JH1201D is a self-contained, ionization fan designed to remove electrostatic charges from non-conductive objects. The ion generator design has a built-in LED touch screen that displays real-time ion balance and fan speed. It is also equipped with an ion needle automatic cleaner that regularly cleans transmitter points, saving some manual work and time.

Product characteristics:

LED TOUCH SCREEN display technology, the display interface is complete and bright, compact and intuitive, real-time monitoring of ion balance. It has a multi-layered menu of functions that can be operated manually, quickly and easily.

Ion balance correction technology, through the outlet sensing device, automatically corrects the best effect when the ion deviates from the equilibrium state. You can use the touch screen to compensate the positive and negative 100V, so that the corrected ion balance achieves the best static elimination performance.

Automatic cleaning function. The cleaning cycle can be set by software. The default brush automatically cleans the ion-emitting needle twice every two hours.

Large air volume, ranging from one to ten level risk control technology, the use of large air volume direct current fan, quickly eliminate static electricity.

Unbalanced alarm technology, alarm value voltage can be manually set. When the ion balance voltage is out of balance and exceeds the set voltage value, the device will automatically alarm.

Optional warm air function. The temperature is adjustable.

Technical parameter

Input voltage: 220V 50Hz/110V 60Hz-DC24V

Power consumption: 15W 110V/0.5A; 220V/1A

Operating temperature: -10°C ~ 45°C

Transmitter point cleaning: 360°C automatic cleaning (default: 2 cycles every 2 hours)

Balance voltage: ≤ 15V (ANSI/ESD STM3.1-2015 maximum fan speed, measuring 30 cm from the fan)

Attenuation time: ≤ 2s (25 ± 5°C, 50 ± 10%RH)

Ozone level: <0.05ppm

Net weight: Approx. 1.2 kg

Overall size: 230L*95D*180H mm
