Features
1. Smart, light , portable design,
2. Quickly neutralize static.
3. Large area covered by ion airflow.
4. Wide adjustment range of wind power.
5. The ion balance is stable, and an ion regulator can be installed.
6. There is an automatic ion emitter cleaner.
7. There is an ionization indicator.
8. If necessary, a cold air heating device can be installed.
9. A filter can be installed if necessary.
10. 1001B single-head ion fan has a good grounding protection function.

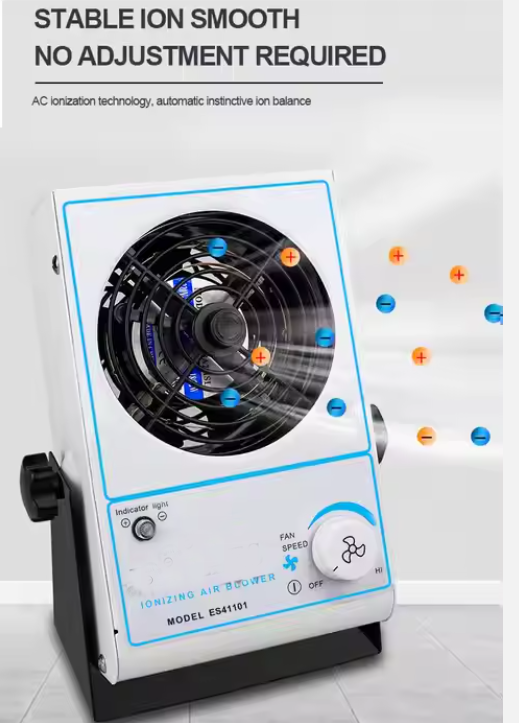

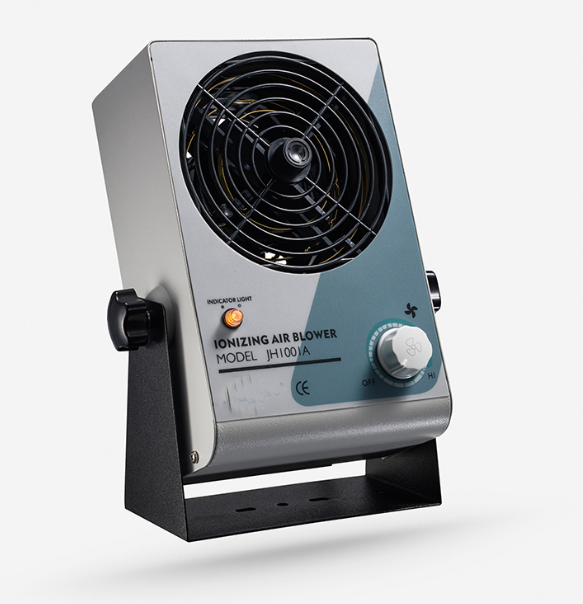

The 1001B single-head AC ion fan is a special equipment for eliminating static. It is an automatic cleaning one. The single-head AC ion fan is a desktop design, which is easy to install, stable in work, and fast in eliminating static. It can provide an overall neutralizing static of the working surface used by the operator.
The 1001B single-head ion fan can generate a large amount of airflow with positive and negative charges, which can neutralize the charge on the object. When the charge on the surface of the object is negative, it will absorb the positive charge in the airflow. When the charge on the surface of the object is positive, it will absorb the negative charge in the airflow, so that the static electricity on the surface of the object is neutralized. , To achieve the purpose of eliminating static electricity.
The 1001B single-head ion fan has a small fan to provide wind power, and the wind power can be adjusted in a large range by the speed control switch.

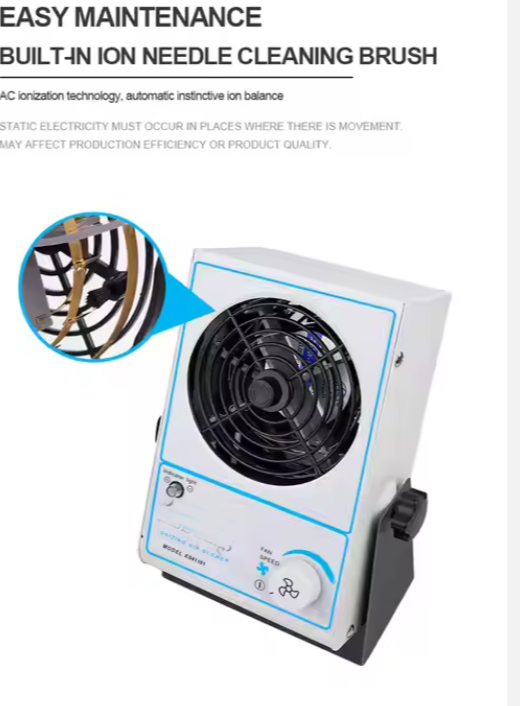

The ionization device of the 1001B single-head ion fan: the ionization device forms a stable high-voltage electric field under the action of the high-voltage and low-current generated by the high-voltage generating device. The ionized air forms an ion body, which is carried out by the airflow to the surface of the object to neutralize static electricity. Purpose. There is a special cleaner on the ionization device, which can remove the dust on the ionization needle and keep the normal operation of the ionization device.
The static elimination function of the JH1001B single-head ion fan can solve the production problems caused by static, such as solving the dust collection problem caused by static, the adhesion problem during the processing of plastic products, and the jumping problem of small parts caused by electrostatic repulsion.
2:Technical parameter
Power | ≤15W |
Input voltage | 220V/50Hz |
Current consumption | 2A (maximum wind speed) |
Air volume | Low speed: 60CFM 2.5m/s |
High speed :150CFM 6.0m/s | |
Coverage | 300mm×300mm×900mm |
Ozone content | ＜0.03PPM (measured 15cm in front of the ion fan) |
(measured 15cm in front of the ion fan) | -10℃～+ 50℃ |
Dimensions (without bracket) | 154mm(L) ×85mm(W) ×203mm(H) |
Dimensions (including bracket) | 215mm(L) ×100mm(W) ×230mm(H |
Residual voltage | ≤±5V (test distance: 300mm-600mm) |
Weight | 2.5kg |
In addition to static test results:
In addition to static test results: | |||
Test voltage：1kv～100v temperature：22℃ humidity：≤60% | |||
Test distance | 300㎜ | 600mm | |
Neutralization time | Neutralization | 0.3s | 0.9S |
negative | 0.3s | 0.7S | |
