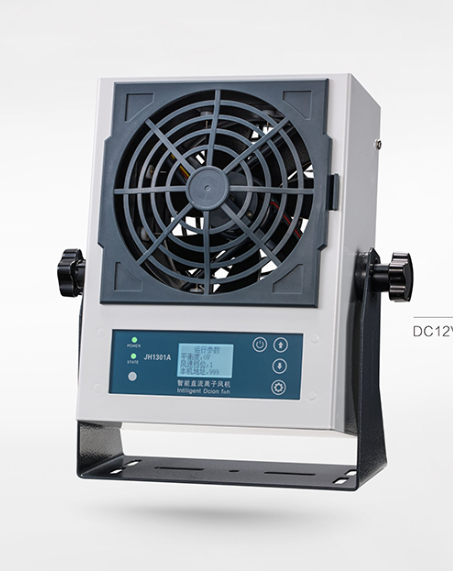

Intelligent networked DC ion fan

Intelligent networked DC ion fan

Principle of action

JH1301 DC ion fan can produce a large amount of air with positive and negative charges, which can neutralize the charge on the object. When the surface of an object is negatively charged, it attracts positive charges in the air stream. When the surface of the object is positively charged, it will attract the negative charge in the air flow, so that the static electricity on the surface of the object is neutralized, to achieve the purpose of eliminating static electricity.

Product characteristics

1. Faster static elimination, low balance voltage, high safety

2. Touch mode & remote control fan starting, wind, ion balance, cleaning time, gateway, infrared detection and other parameters

3. Pre-duplex detection height isolation design, truly stable detection of unbalanced voltage and isolation of external interference source signals

4. Rear screen machine, front high voltage transmitter design, so that high pressure ionized positive and negative ions balanced release

5. The protective design of the snap fasten. when the snap opens, the power supply alarm is automatically cut off, preventing electric shock, and easy to clean the south piece and replace the launching pin

6. The fan encounters an obstacle during operation, triggering an automatic short circuit to stop working

7. High voltage fault beep light dual alarm

8. The plunger launch pin design can avoid replacing the launcher and save maintenance costs

9. Automatic cleaning firing needle brush, cleaning records archived

10. Low power consumption, energy saving and environmental protection

11. ZigBbee2.4G wireless network communication

12. The system platform is networked to collect electrostatic status and values, perform report analysis, real-time Kanban, and remotely monitor alarms in real time

11, energy saving and environmental protection, low power consumption.

12, the balance voltage has automatic adjustment function

Technical parameter

Work rate:≤15W

Input voltage: AC220V/50Hz

Input voltage: DC12V

Time consumed: ≤2S(300mm from the test center in front of the fan)

Current consumption: 2A (Maximum wind speed)

Air output:

Low speed 60CFM 2.5m/s

High speed 150CFM 6.0m/s

Effective coverage :300mm×300mm×900mm

Ozone content :< 0.03PPM (measured 15cm in front of ion fan)

Ambient service temperature :-10℃ ~ + 50℃

Overall dimensions (without support) : 154mm(L) ×85mm(W) ×203mm(H)

Overall dimensions (including support) : 215mm(L) ×100mm(W) ×230mm(H

Residual voltage : ≤±5V (test distance: 300mm-600mm)

weight: 2.5 kg

Housing material :Cold-rolled sheet
